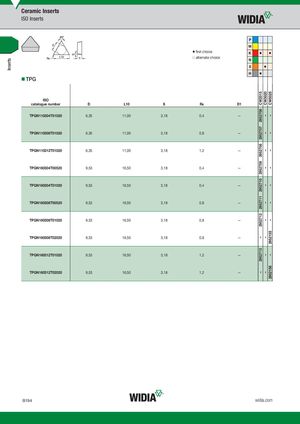

| PG ISO catalogue number | D S | L10 | S | R � �first choice �alternate choice | D1 | P M K N S H | CW2015 CW3020 CW5025 � � � � |
| TPGN110304T01020 | 6,35 | 11,00 | 3,18 | 0,4 | — | 2952706 – – | |
| TPGN110308T01020 | 6,35 | 11,00 | 3,18 | 0,8 | — | 2952707 – – | |
| TPGN110312T01020 | 6,35 | 11,00 | 3,18 | 1,2 | — | 2952708 – – | |
| TPGN160304T00520 | 9,53 | 16,50 | 3,18 | 0,4 | — | 2952709 – – | |
| TPGN160304T01020 | 9,53 | 16,50 | 3,18 | 0,4 | — | 2952710 – – | |
| TPGN160308T00520 | 9,53 | 16,50 | 3,18 | 0,8 | — | 2952711 – – | |
| TPGN160308T01020 | 9,53 | 16,50 | 3,18 | 0,8 | — | 2952712 – – | |
| TPGN160308T02020 | 9,53 | 16,50 | 3,18 | 0,8 | — | – – 2952155 | |
| TPGN160312T01020 | 9,53 | 16,50 | 3,18 | 1,2 | — | 2952713 – – | |
| TPGN160312T02020 | 9,53 | 16,50 | 3,18 | 1,2 | — | – – 2952156 |
