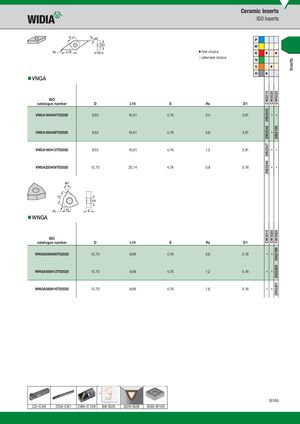

Общий каталог Widia 2017 - страница 215
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
first choice alternate choice
- VNGA
P M K N S H
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| VNGA160404T02020 | 9,53 | 16,61 | 4,76 | 0,4 | 3,81 |
VNGA160408T02020 9,53 16,61 4,76 0,8 3,81
VNGA160412T02020 9,53 16,61 4,76 1,2 3,81
VNGA220408T02020 12,70 22,14 4,76 0,8 5,16
- WNGA
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| WNGA080408T02020 | 12,70 | 8,69 | 4,76 | 0,8 | 5,16 |
WNGA080412T02020 12,70 8,69 4,76 1,2 5,16
WNGA080416T02020 12,70 8,69 4,76 1,6 5,16
