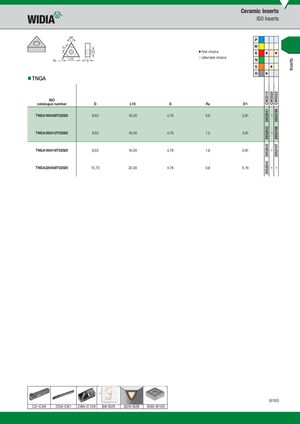

| NGA D Rε L10 60˚ | D1 S | �first choice �alternate choice | P M K N S H | � � � � | |||
| ISO catalogue number | D | L10 | S | R � | D1 | CW2015 CW3020 CW5025 | |
| TNGA160408T02020 TNGA160412T02020 | 9,53 9,53 | 16,50 16,50 | 4,76 4,76 | 0,8 1,2 | 3,81 3,81 | 2952541 – 2952195 2952542 – 2952196 | |
| TNGA160416T02020 TNGA220408T02020 | 9,53 12,70 | 16,50 22,00 | 4,76 4,76 | 1,6 0,8 | 3,81 5,16 | 2952543 – 2952197 2952544 – – |
