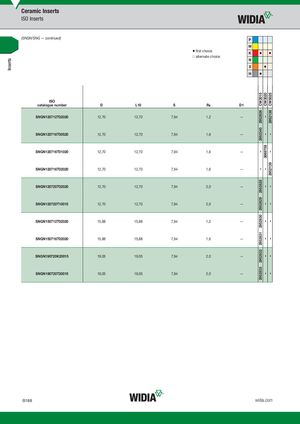

| — connue) | �first choice �alternate choice | P M K N S H | � � � � | |||
| ISO catalogue number | D | L10 | S | R � | D1 | CW2015 CW3020 CW5025 |
| SNGN120712T02020 | 12,70 | 12,70 | 7,94 | 1,2 | — | 2952826 – 2952138 |
| SNGN120716T00520 | 12,70 | 12,70 | 7,94 | 1,6 | — | 2953340 – – |
| SNGN120716T01020 | 12,70 | 12,70 | 7,94 | 1,6 | — | – 3869759 – |
| SNGN120716T02020 | 12,70 | 12,70 | 7,94 | 1,6 | — | – – 2952139 |
| SNGN120720T02020 | 12,70 | 12,70 | 7,94 | 2,0 | — | 2952828 – – |
| SNGN120720T10015 | 12,70 | 12,70 | 7,94 | 2,0 | — | 2952829 – – |
| SNGN150712T02020 | 15,88 | 15,88 | 7,94 | 1,2 | — | 2952830 – – |
| SNGN150716T02020 | 15,88 | 15,88 | 7,94 | 1,6 | — | 2952831 – – |
| SNGN190720K20015 | 19,05 | 19,05 | 7,94 | 2,0 | — | 2952832 – – |
| SNGN190720T20015 | 19,05 | 19,05 | 7,94 | 2,0 | — | 2952833 – – |
