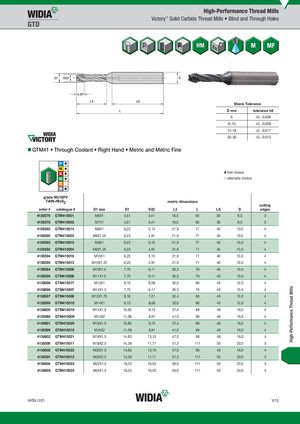

Общий каталог Widia 2017 - страница 1779
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| Shank Tolerance |
| D mm tolerance h6 |
| 6 +0, -0,008 |
| 8–10 +0, -0,009 |
| 12–18 +0, -0,011 |
| 20–30 +0, -0,013 |
GTM41 • Through Coolant • Right Hand • Metric and Metric Fine
first choice alternate choice
grade WU16PVWU16PV
| WU16PV grade WU16PV TiAlN+MoS2 | metric dime | nsions | cuttin | |||||
| order # catalogue # | D1 size | D1 | D22 | L3 | L | LS | D | g edges |
| 4138576 GTM415001 | M6X1 | 4,51 | 3,41 | 16,5 | 60 | 36 | 8,0 | 3 |
| 4138578 GTM415002 | M7X1 | 4,51 | 3,41 | 16,5 | 60 | 36 | 8,0 | 3 |
| 4138592 GTM415014 | M8X1 | 6,23 | 5,13 | 21,9 | 71 | 40 | 10,0 | 4 |
| 4138580 GTM415003 | M8X1.25 | 6,23 | 4,91 | 21,9 | 71 | 40 | 10,0 | 4 |
| 4138593 GTM415015 | M9X1 | 6,23 | 5,13 | 21,9 | 71 | 40 | 10,0 | 4 |
| 4138582 GTM415004 | M9X1.25 | 6,23 | 4,91 | 21,9 | 71 | 40 | 10,0 | 4 |
| 4138594 GTM415016 | M10X1 | 6,23 | 5,13 | 21,9 | 71 | 40 | 10,0 | 4 |
| 4138595 GTM415013 | M10X1.25 | 6,23 | 4,91 | 21,9 | 71 | 40 | 10,0 | 4 |
| 4138584 GTM415005 | M10X1.5 | 7,75 | 6,11 | 26,3 | 76 | 40 | 10,0 | 4 |
| 4138586 GTM415006 | M11X1.5 | 7,75 | 6,11 | 26,3 | 76 | 40 | 10,0 | 4 |
| 4138596 GTM415017 | M12X1 | 9,15 | 8,06 | 30,0 | 86 | 45 | 12,0 | 4 |
| 4138598 GTM415007 | M12X1.5 | 7,75 | 6,11 | 26,3 | 76 | 40 | 10,0 | 4 |
| 4138587 GTM415008 | M12X1.75 | 9,16 | 7,21 | 32,4 | 86 | 45 | 12,0 | 4 |
| 4138599 GTM415018 | M14X1 | 9,15 | 8,06 | 30,0 | 86 | 45 | 12,0 | 4 |
| 4138600 GTM415019 | M14X1.5 | 10,83 | 9,15 | 37,4 | 98 | 48 | 16,0 | 4 |
| 4138588 GTM415009 | M14X2 | 11,08 | 8,91 | 41,0 | 98 | 48 | 16,0 | 4 |
| 4138601 GTM415020 | M16X1.5 | 10,83 | 9,15 | 37,4 | 98 | 48 | 16,0 | 4 |
| 4138589 GTM415010 | M16X2 | 11,08 | 8,91 | 41,0 | 98 | 48 | 16,0 | 4 |
| 4138602 GTM415021 | M18X1.5 | 14,83 | 13,15 | 47,0 | 98 | 48 | 16,0 | 4 |
| 4138590 GTM415011 | M18X2.5 | 14,38 | 11,71 | 51,3 | 111 | 50 | 20,0 | 5 |
| 4138603 GTM415022 | M20X1.5 | 14,83 | 13,15 | 47,0 | 98 | 48 | 16,0 | 4 |
| 4138591 GTM415012 | M20X2.5 | 14,38 | 11,71 | 51,3 | 111 | 50 | 20,0 | 5 |
| 4138604 GTM415023 | M22X1.5 | 18,23 | 16,55 | 56,0 | 111 | 50 | 20,0 | 5 |
| 4138605 GTM415024 | M24X1.5 | 18,23 | 16,55 | 56,0 | 111 | 50 | 20,0 | 5 |
