| Shank Tolerance |
| D mm tolerance h6 |
| 6 +0, -0,008 |
| 8–10 +0, -0,009 |
| 12–18 +0, -0,011 |
| 20–30 +0, -0,013 |

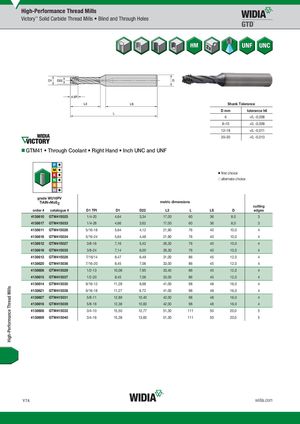

GTM41 • Through Coolant • Right Hand • Inch UNC and UNF
first choice alternate choice
grade WU16PVWU16PV
| WU16PV grade WU16PV TiAlN+MoS2 | metric dime | nsions | ||||||
| order # catalogue # | D1 TPI | D1 | D22 | L3 | L | LS | D | cutting edges |
| 4138610 GTM415025 | 1/4-20 | 4,64 | 3,34 | 17,00 | 60 | 36 | 8,0 | 3 |
| 4138617 GTM415033 | 1/4-28 | 4,66 | 3,62 | 17,00 | 60 | 36 | 8,0 | 3 |
| 4138611 GTM415026 | 5/16-18 | 5,64 | 4,12 | 21,90 | 76 | 40 | 10,0 | 4 |
| 4138618 GTM415034 | 5/16-24 | 5,64 | 4,48 | 21,90 | 76 | 40 | 10,0 | 4 |
| 4138612 GTM415027 | 3/8-16 | 7,16 | 5,42 | 26,30 | 76 | 40 | 10,0 | 4 |
| 4138619 GTM415035 | 3/8-24 | 7,14 | 6,00 | 26,30 | 76 | 40 | 10,0 | 4 |
| 4138613 GTM415028 | 7/16/14 | 8,47 | 6,49 | 31,00 | 86 | 45 | 12,0 | 4 |
| 4138620 GTM415036 | 7/16-20 | 8,45 | 7,06 | 33,00 | 86 | 45 | 12,0 | 4 |
| 4138606 GTM415029 | 1/2-13 | 10,08 | 7,95 | 33,40 | 86 | 45 | 12,0 | 4 |
| 4138615 GTM415037 | 1/2-20 | 8,45 | 7,06 | 33,00 | 86 | 45 | 12,0 | 4 |
| 4138614 GTM415030 | 9/16-12 | 11,28 | 8,98 | 41,00 | 98 | 48 | 16,0 | 4 |
| 4138621 GTM415038 | 9/16-18 | 11,27 | 9,72 | 41,00 | 98 | 48 | 16,0 | 4 |
| 4138607 GTM415031 | 5/8-11 | 12,89 | 10,40 | 42,00 | 98 | 48 | 16,0 | 4 |
| 4138616 GTM415039 | 5/8-18 | 12,38 | 10,83 | 42,00 | 98 | 48 | 16,0 | 4 |
| 4138608 GTM415032 | 3/4-10 | 15,50 | 12,77 | 51,30 | 111 | 50 | 20,0 | 5 |
| 4138609 GTM415040 | 3/4-16 | 15,38 | 13,65 | 51,30 | 111 | 50 | 20,0 | 5 |
