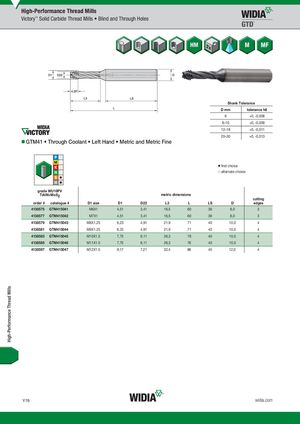

| Shank T | olerance | ||||||
| D mm | tolerance h6 | ||||||
| 6 | +0, -0,008 | ||||||
| 8–10 | +0, -0,009 | ||||||
| 12–18 | +0, -0,011 | ||||||
| TM41 • Through Coo | lant • Left Ha | nd • Metri | c and Met | ric Fine | 20–30 | +0, -0,013 | |
| �first choice �alternate cho | ice | ||||||
| WU16PV grade WU16PV TiAlN+MoS2 order # catalogue # | D1 size | D1 | D22 | L3 metric dime | L nsions | LS D | cutting edges |
| 4138575 GTM415041 | M6X1 | 4,51 | 3,41 | 16,5 | 60 | 36 8,0 | 3 |
| 4138577 GTM415042 | M7X1 | 4,51 | 3,41 | 16,5 | 60 | 36 8,0 | 3 |
| 4138579 GTM415043 | M8X1.25 | 6,23 | 4,91 | 21,9 | 71 | 40 10,0 | 4 |
| 4138581 GTM415044 | M9X1.25 | 6,23 | 4,91 | 21,9 | 71 | 40 10,0 | 4 |
| 4138583 GTM415045 | M10X1.5 | 7,75 | 6,11 | 26,3 | 76 | 40 10,0 | 4 |
| 4138585 GTM415046 | M11X1.5 | 7,75 | 6,11 | 26,3 | 76 | 40 10,0 | 4 |
| 4138597 GTM415047 | M12X1.5 | 9,17 | 7,21 | 32,4 | 86 | 45 12,0 | 4 |
