| Shank Tolerance |
| D mm tolerance h6 |
| 6 +0, -0,008 |
| 8–10 +0, -0,009 |
| 12–18 +0, -0,011 |
| 20–30 +0, -0,013 |

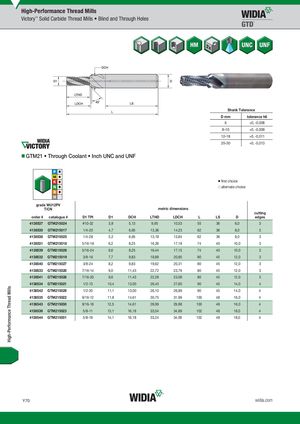

GTM21 • Through Coolant • Inch UNC and UNF
first choice alternate choice
grade WU12PVWU12PV
| WU12PV grade WU12PV TiCN order # catalogue # | D1 TPI | D1 | DCH | LTHD metri | LDCH c dimensions | L | LS | D | cutting edges |
| 4138537 GTM215024 | #10-32 | 3,8 | 5,13 | 9,95 | 10,53 | 55 | 36 | 6,0 | 3 |
| 4138530 GTM215017 | 1/4-20 | 4,7 | 6,65 | 13,36 | 14,23 | 62 | 36 | 8,0 | 3 |
| 4138538 GTM215025 | 1/4-28 | 5,2 | 6,65 | 13,19 | 13,84 | 62 | 36 | 8,0 | 3 |
| 4138531 GTM215018 | 5/16-18 | 6,2 | 8,25 | 16,26 | 17,19 | 74 | 40 | 10,0 | 3 |
| 4138539 GTM215026 | 5/16-24 | 6,6 | 8,25 | 16,44 | 17,15 | 74 | 40 | 10,0 | 3 |
| 4138532 GTM215019 | 3/8-16 | 7,7 | 9,83 | 19,89 | 20,85 | 80 | 45 | 12,0 | 3 |
| 4138540 GTM215027 | 3/8-24 | 8,2 | 9,83 | 19,62 | 20,31 | 80 | 45 | 12,0 | 3 |
| 4138533 GTM215020 | 7/16-14 | 9,0 | 11,43 | 22,72 | 23,79 | 80 | 45 | 12,0 | 3 |
| 4138541 GTM215028 | 7/16-20 | 9,6 | 11,43 | 22,28 | 23,08 | 80 | 45 | 12,0 | 3 |
| 4138534 GTM215021 | 1/2-13 | 10,4 | 13,00 | 26,43 | 27,60 | 90 | 45 | 14,0 | 4 |
| 4138542 GTM215029 | 1/2-20 | 11,1 | 13,00 | 26,10 | 26,89 | 90 | 45 | 14,0 | 4 |
| 4138535 GTM215022 | 9/16-12 | 11,8 | 14,61 | 30,75 | 31,99 | 100 | 48 | 16,0 | 4 |
| 4138543 GTM215030 | 9/16-18 | 12,5 | 14,61 | 28,99 | 29,88 | 100 | 48 | 16,0 | 4 |
| 4138536 GTM215023 | 5/8-11 | 13,1 | 16,18 | 33,54 | 34,89 | 102 | 48 | 18,0 | 4 |
| 4138544 GTM215031 | 5/8-18 | 14,1 | 16,18 | 33,24 | 34,09 | 102 | 48 | 18,0 | 4 |
