| Shank To | lerance |
| D mm | tolerance h6 |
| 6 | +0, -0,008 |
| 8–10 | +0, -0,009 |
| 12–18 | +0, -0,011 |
| 20–30 | +0, -0,013 |

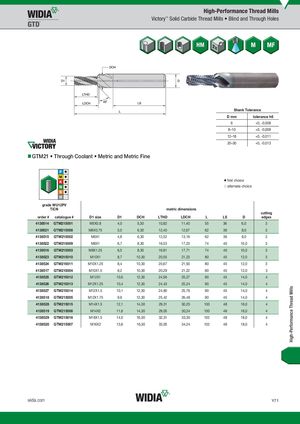

GTM21 • Through Coolant • Metric and Metric Fine
first choice alternate choice
grade WU12PVWU12PV
| WU12PV grade WU12PV TiCN | metri | c dimensions | cutting | ||||||
| order # catalogue # | D1 size | D1 | DCH | LTHD | LDCH | L | LS | D | edges |
| 4138514 GTM215001 | M5X0.8 | 4,0 | 5,30 | 10,82 | 11,40 | 55 | 36 | 6,0 | 3 |
| 4138521 GTM215008 | M6X0.75 | 5,0 | 6,30 | 12,40 | 12,97 | 62 | 36 | 8,0 | 3 |
| 4138515 GTM215002 | M6X1 | 4,8 | 6,30 | 12,52 | 13,19 | 62 | 36 | 8,0 | 3 |
| 4138522 GTM215009 | M8X1 | 6,7 | 8,30 | 16,53 | 17,23 | 74 | 40 | 10,0 | 3 |
| 4138516 GTM215003 | M8X1.25 | 6,5 | 8,30 | 16,91 | 17,71 | 74 | 40 | 10,0 | 3 |
| 4138523 GTM215010 | M10X1 | 8,7 | 10,30 | 20,55 | 21,23 | 80 | 45 | 12,0 | 3 |
| 4138524 GTM215011 | M10X1.25 | 8,4 | 10,30 | 20,67 | 21,50 | 80 | 45 | 12,0 | 3 |
| 4138517 GTM215004 | M10X1.5 | 8,2 | 10,30 | 20,29 | 21,22 | 80 | 45 | 12,0 | 3 |
| 4138525 GTM215012 | M12X1 | 10,6 | 12,30 | 24,56 | 25,27 | 90 | 45 | 14,0 | 4 |
| 4138526 GTM215013 | M12X1.25 | 10,4 | 12,30 | 24,43 | 25,24 | 90 | 45 | 14,0 | 4 |
| 4138527 GTM215014 | M12X1.5 | 10,1 | 12,30 | 24,80 | 25,76 | 90 | 45 | 14,0 | 4 |
| 4138518 GTM215005 | M12X1.75 | 9,9 | 12,30 | 25,42 | 26,48 | 90 | 45 | 14,0 | 4 |
| 4138528 GTM215015 | M14X1.5 | 12,1 | 14,30 | 29,31 | 30,25 | 100 | 48 | 16,0 | 4 |
| 4138519 GTM215006 | M14X2 | 11,6 | 14,30 | 29,05 | 30,24 | 100 | 48 | 16,0 | 4 |
| 4138529 GTM215016 | M16X1.5 | 14,0 | 16,30 | 32,31 | 33,30 | 102 | 48 | 18,0 | 4 |
| 4138520 GTM215007 | M16X2 | 13,6 | 16,30 | 33,05 | 34,24 | 102 | 48 | 18,0 | 4 |
