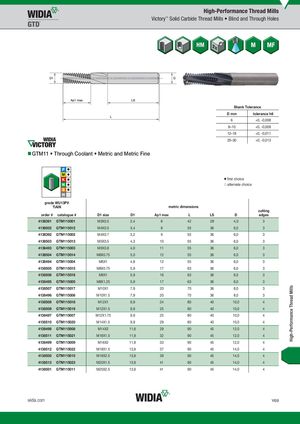

GTM11 • Through Coolant • Metric and Metric Fine
first choice alternate choice
grade WU13PVWU13PV
| WU13PV grade WU13PV TiAlN | metri | c dimensions | |||||
| order # catalogue # | D1 size | D1 | Ap1 max | L | LS | D | cutting edges |
| 4138391 GTM115001 | M3X0.5 | 2,4 | 6 | 42 | 28 | 4,0 | 3 |
| 4138502 GTM115012 | M4X0.5 | 3,4 | 8 | 55 | 36 | 6,0 | 3 |
| 4138392 GTM115002 | M4X0.7 | 3,2 | 9 | 55 | 36 | 6,0 | 3 |
| 4138503 GTM115013 | M5X0.5 | 4,3 | 10 | 55 | 36 | 6,0 | 3 |
| 4138493 GTM115003 | M5X0.8 | 4,0 | 11 | 55 | 36 | 6,0 | 3 |
| 4138504 GTM115014 | M6X0.75 | 5,0 | 12 | 55 | 36 | 6,0 | 3 |
| 4138494 GTM115004 | M6X1 | 4,8 | 12 | 55 | 36 | 6,0 | 3 |
| 4138505 GTM115015 | M8X0.75 | 5,9 | 17 | 63 | 36 | 6,0 | 3 |
| 4138506 GTM115016 | M8X1 | 5,9 | 16 | 63 | 36 | 6,0 | 3 |
| 4138495 GTM115005 | M8X1.25 | 5,9 | 17 | 63 | 36 | 6,0 | 3 |
| 4138507 GTM115017 | M10X1 | 7,9 | 20 | 70 | 36 | 8,0 | 3 |
| 4138496 GTM115006 | M10X1.5 | 7,9 | 20 | 70 | 36 | 8,0 | 3 |
| 4138508 GTM115018 | M12X1 | 9,9 | 24 | 80 | 40 | 10,0 | 4 |
| 4138509 GTM115019 | M12X1.5 | 9,9 | 25 | 80 | 40 | 10,0 | 4 |
| 4138497 GTM115007 | M12X1.75 | 9,9 | 25 | 80 | 40 | 10,0 | 4 |
| 4138510 GTM115020 | M14X1.5 | 9,9 | 29 | 80 | 40 | 10,0 | 4 |
| 4138498 GTM115008 | M14X2 | 11,6 | 29 | 90 | 45 | 12,0 | 4 |
| 4138511 GTM115021 | M16X1.5 | 11,9 | 32 | 90 | 45 | 12,0 | 4 |
| 4138499 GTM115009 | M16X2 | 11,9 | 33 | 90 | 45 | 12,0 | 4 |
| 4138512 GTM115022 | M18X1.5 | 13,9 | 37 | 90 | 45 | 14,0 | 4 |
| 4138500 GTM115010 | M18X2.5 | 13,9 | 39 | 90 | 45 | 14,0 | 4 |
| 4138513 GTM115023 | M20X1.5 | 13,9 | 41 | 90 | 45 | 14,0 | 4 |
| 4138501 GTM115011 | M20X2.5 | 13,9 | 41 | 90 | 45 | 14,0 | 4 |
