- Material Overview • DIN
- WP42EG TiCN
- WU41EG TiN
- WP49EG oxide
- WU40EG bright
| Shank To | lerance |
| D mm | tolerance h9 |
| 1–3 | +0, -0,025 |
| >3–6 | +0, -0,030 |
| >6–10 | +0, -0,036 |
| >10–18 | +0, -0,043 |
| >18–30 | +0, -0,052 |

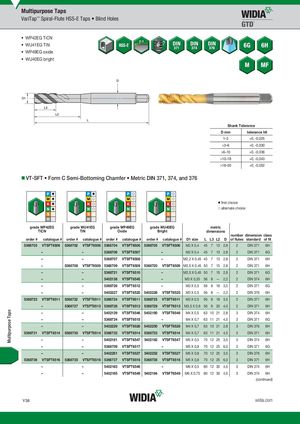

VT-SFT Form C Semi-Bottoming Chamfer Metric DIN 371, 374, and 376
first choice alternate choice
grade WP42EGWP42EG grade WU41EGWU41EG grade WP49EGWP49EG grade WU40EGWU40EG metric
TiCN TiN Oxide Bright dimensions
| WP42EG grade WP42EG TiCN order # catalogue # | WU41EG WP grade WU41EG TiN order # catalogue # grade O order # | 49EG WP49EG xide catalogue # | WU40EG grade WU40EG Bright order # catalogue # | D1 size | L L m dim | 3 L et en | 2 D ric sions | number of flutes | dimension standard | class of fit |
| 5368703 VTSFT6506 | 5368702 VTSFT6506 5368704 | VTSFT6506 | 5368705 VTSFT6506 | M2 X 0,4 | 45 7 | 1 | 3 2,8 | 2 | DIN 371 | 6H |
| – | – 5368706 | VTSFT6507 | – | M2 X 0,4 | 45 7 | 1 | 3 2,8 | 2 | DIN 371 | 6G |
| – | – 5368707 | VTSFT6508 | – | M2,2 X 0,45 | 45 7 | 1 | 3 2,8 | 2 | DIN 371 | 6H |
| – | 5368708 VTSFT6509 5368709 | VTSFT6509 | 5368720 VTSFT6509 | M2,5 X 0,45 | 50 7 | 1 | 5 2,8 | 2 | DIN 371 | 6H |
| – | – 5368721 | VTSFT6510 | – | M2,5 X 0,45 | 50 7 | 1 | 5 2,8 | 2 | DIN 371 | 6G |
| – | – 5402138 | VTSFT6545 | – | M3 X 0,35 | 56 8 | — 2,2 | 2 | DIN 374 | 6H | |
| – | – 5368726 | VTSFT6512 | – | M3 X 0,5 | 56 8 | 1 | 8 3,5 | 2 | DIN 371 | 6G |
| – | – 5402227 | VTSFT6525 | 5402228 VTSFT6525 | M3 X 0,5 | 56 8 | — 2,2 | 2 | DIN 376 | 6H | |
| 5368723 VTSFT6511 | 5368722 VTSFT6511 5368724 | VTSFT6511 | 5368725 VTSFT6511 | M3 X 0,5 | 56 8 | 1 | 8 3,5 | 2 | DIN 371 | 6H |
| – | 5368727 VTSFT6513 5368728 | VTSFT6513 | 5368729 VTSFT6513 | M3,5 X 0,6 | 56 9 | 2 | 0 4,0 | 2 | DIN 371 | 6H |
| – | – 5402139 | VTSFT6546 | 5402180 VTSFT6546 | M4 X 0,5 | 63 1 | 0 2 | 1 2,8 | 3 | DIN 374 | 6H |
| – | – 5368734 | VTSFT6515 | – | M4 X 0,7 | 63 1 | 1 2 | 1 4,5 | 3 | DIN 371 | 6G |
| – | – 5402229 | VTSFT6526 | 5402250 VTSFT6526 | M4 X 0,7 | 63 1 | 0 2 | 1 2,8 | 3 | DIN 376 | 6H |
| 5368731 VTSFT6514 | 5368730 VTSFT6514 5368732 | VTSFT6514 | 5368733 VTSFT6514 | M4 X 0,7 | 63 1 | 1 2 | 1 4,5 | 3 | DIN 371 | 6H |
| – | – 5402181 | VTSFT6547 | 5402182 VTSFT6547 | M5 X 0,5 | 70 1 | 2 2 | 5 3,5 | 3 | DIN 374 | 6H |
| – | – 5368739 | VTSFT6517 | – | M5 X 0,8 | 70 1 | 2 2 | 5 6,0 | 3 | DIN 371 | 6G |
| – | – 5402251 | VTSFT6527 | 5402252 VTSFT6527 | M5 X 0,8 | 70 1 | 2 2 | 5 3,5 | 3 | DIN 376 | 6H |
| 5368736 VTSFT6516 | 5368735 VTSFT6516 5368737 | VTSFT6516 | 5368738 VTSFT6516 | M5 X 0,8 | 70 1 | 2 2 | 5 6,0 | 3 | DIN 371 | 6H |
| – | – 5402183 | VTSFT6548 | – | M6 X 0,5 | 80 1 | 2 3 | 0 4,5 | 3 | DIN 374 | 6H |
| – | – 5402185 | VTSFT6549 | 5402184 VTSFT6549 | M6 X 0,75 | 80 1 | 2 3 | 0 4,5 | 3 | DIN 374 | 6H |
