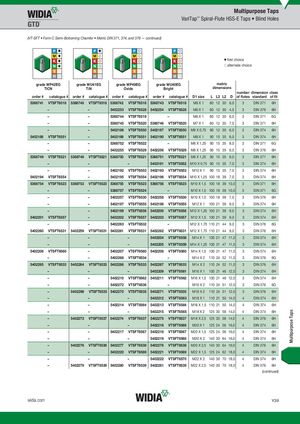

(VT-SFT • Form C Semi-Bottoming Chamfer • Metric DIN 371, 374, and 376 — continued)
| � � | first c altern | i hoice ate choic | e | |||||||
| WP42EG grade WP42EG TiCN | WU41EG WP grade WU41EG TiN grade O | 49EG WP49EG xide | WU40EG grade WU40EG Bright | me dime | tri nsi | c ons | ||||
| b | dii | l | ||||||||
| order # catalogue # | order # catalogue # order # | catalogue # | order # catalogue # | D1 size | L L3 | L2 | D | numer of flutes | menson standard | cass of fit |
| 5368741 VTSFT6518 | 5368740 VTSFT6518 5368742 | VTSFT6518 | 5368743 VTSFT6518 | M6 X 1 | 80 12 | 30 | 6,0 | 3 | DIN 371 | 6H |
| – | – 5402253 | VTSFT6528 | 5402254 VTSFT6528 | M6 X 1 | 80 12 | 30 | 4,5 | 3 | DIN 376 | 6H |
| – | – 5368744 | VTSFT6519 | – | M6 X 1 | 80 12 | 30 | 6,0 | 3 | DIN 371 | 6G |
| – | – 5368745 | VTSFT6520 | 5368746 VTSFT6520 | M7 X 1 | 80 12 | 30 | 7,0 | 3 | DIN 371 | 6H |
| – | – 5402186 | VTSFT6550 | 5402187 VTSFT6550 | M8 X 0,75 | 80 12 | 30 | 6,0 | 3 | DIN 374 | 6H |
| 5402188 VTSFT6551 | – 5402189 | VTSFT6551 | 5402190 VTSFT6551 | M8 X 1 | 90 15 | 35 | 6,0 | 3 | DIN 374 | 6H |
| – | – 5368752 | VTSFT6522 | – | M8 X 1,25 | 90 15 | 35 | 8,0 | 3 | DIN 371 | 6G |
| – | – 5402255 | VTSFT6529 | 5402256 VTSFT6529 | M8 X 1,25 | 90 15 | 35 | 6,0 | 3 | DIN 376 | 6H |
| 5368749 VTSFT6521 | 5368748 VTSFT6521 5368750 | VTSFT6521 | 5368751 VTSFT6521 | M8 X 1,25 | 90 15 | 35 | 8,0 | 3 | DIN 371 | 6H |
| – | – | – | 5402191 VTSFT6552 | M10 X 0,75 | 90 15 | 35 | 7,0 | 3 | DIN 374 | 6H |
| – | – 5402192 | VTSFT6553 | 5402193 VTSFT6553 | M10 X 1 | 90 15 | 35 | 7,0 | 3 | DIN 374 | 6H |
| 5402194 VTSFT6554 | – 5402195 | VTSFT6554 | 5402196 VTSFT6554 | M10 X 1,25 | 100 18 | 39 | 7,0 | 3 | DIN 374 | 6H |
| 5368754 VTSFT6523 | 5368753 VTSFT6523 5368755 | VTSFT6523 | 5368756 VTSFT6523 | M10 X 1,5 | 100 18 | 39 | 10,0 | 3 | DIN 371 | 6H |
| – | – 5368757 | VTSFT6524 | – | M10 X 1,5 | 100 18 | 39 | 10,0 | 3 | DIN 371 | 6G |
| – | – 5402257 | VTSFT6530 | 5402258 VTSFT6530 | M10 X 1,5 | 100 18 | 39 | 7,0 | 3 | DIN 376 | 6H |
| – | – 5402197 | VTSFT6555 | 5402198 VTSFT6555 | M12 X 1 | 100 21 | 39 | 9,0 | 3 | DIN 374 | 6H |
| – | – 5402199 | VTSFT6556 | 5402200 VTSFT6556 | M12 X 1,25 | 100 21 | 39 | 9,0 | 3 | DIN 374 | 6H |
| 5402201 VTSFT6557 | – 5402202 | VTSFT6557 | 5402203 VTSFT6557 | M12 X 1,5 | 100 21 | 39 | 9,0 | 3 | DIN 374 | 6H |
| – | – 5402263 | VTSFT6532 | – | M12 X 1,75 | 110 21 | 44 | 9,0 | 3 | DIN 376 | 6G |
| 5402260 VTSFT6531 | 5402259 VTSFT6531 5402261 | VTSFT6531 | 5402262 VTSFT6531 | M12 X 1,75 | 110 21 | 44 | 9,0 | 3 | DIN 376 | 6H |
| – | – | – | 5402204 VTSFT6558 | M14 X 1 | 100 21 | 47 | 11,0 | 3 | DIN 374 | 6H |
| – | – | – | 5402205 VTSFT6559 | M14 X 1,25 | 100 21 | 47 | 11,0 | 3 | DIN 374 | 6H |
| 5402206 VTSFT6560 | – 5402207 | VTSFT6560 | 5402208 VTSFT6560 | M14 X 1,5 | 100 21 | 47 | 11,0 | 3 | DIN 374 | 6H |
| – | – 5402268 | VTSFT6534 | – | M14 X 2 | 110 24 | 52 | 11,0 | 3 | DIN 376 | 6G |
| 5402265 VTSFT6533 | 5402264 VTSFT6533 5402266 | VTSFT6533 | 5402267 VTSFT6533 | M14 X 2 | 110 24 | 52 | 11,0 | 3 | DIN 376 | 6H |
| – | – | – | 5402209 VTSFT6561 | M16 X 1 | 100 21 | 46 | 12,0 | 3 | DIN 374 | 6H |
| – | – 5402210 | VTSFT6562 | 5402211 VTSFT6562 | M16 X 1,5 | 100 21 | 46 | 12,0 | 3 | DIN 374 | 6H |
| – | – 5402272 | VTSFT6536 | – | M16 X 2 | 110 24 | 51 | 12,0 | 3 | DIN 376 | 6G |
| – | 5402269 VTSFT6535 5402270 | VTSFT6535 | 5402271 VTSFT6535 | M16 X 2 | 110 24 | 51 | 12,0 | 3 | DIN 376 | 6H |
| – | – | – | 5402212 VTSFT6563 | M18 X 1 | 110 21 | 50 | 14,0 | 4 | DIN 374 | 6H |
| – | – 5402214 | VTSFT6564 | 5402213 VTSFT6564 | M18 X 1,5 | 110 21 | 50 | 14,0 | 4 | DIN 374 | 6H |
| – | – | – | 5402215 VTSFT6565 | M18 X 2 | 125 30 | 58 | 14,0 | 4 | DIN 374 | 6H |
| – | 5402273 VTSFT6537 5402274 | VTSFT6537 | 5402275 VTSFT6537 | M18 X 2,5 | 125 30 | 58 | 14,0 | 4 | DIN 376 | 6H |
| – | – | – | 5402216 VTSFT6566 | M20 X 1 | 125 24 | 56 | 16,0 | 4 | DIN 374 | 6H |
| – | – 5402217 | VTSFT6567 | 5402218 VTSFT6567 | M20 X 1,5 | 125 24 | 56 | 16,0 | 4 | DIN 374 | 6H |
| – | – | – | 5402219 VTSFT6568 | M20 X 2 | 140 30 | 64 | 16,0 | 4 | DIN 374 | 6H |
| – | 5402276 VTSFT6538 5402277 | VTSFT6538 | 5402278 VTSFT6538 | M20 X 2,5 | 140 30 | 64 | 16,0 | 4 | DIN 376 | 6H |
| – | – 5402220 | VTSFT6569 | 5402221 VTSFT6569 | M22 X 1,5 | 125 24 | 62 | 18,0 | 4 | DIN 374 | 6H |
| – | – | – | 5402222 VTSFT6570 | M22 X 2 | 140 30 | 70 | 18,0 | 4 | DIN 374 | 6H |
| – | 5402279 VTSFT6539 5402280 | VTSFT6539 | 5402281 VTSFT6539 | M22 X 2,5 | 140 30 | 70 | 18,0 | 4 | DIN 376 | 6H |
