- WP49EG oxide
| Shank To | lerance |
| D mm | tolerance h9 |
| 1–3 | +0, -0,025 |
| >3–6 | +0, -0,030 |
| >6–10 | +0, -0,036 |
| >10–18 | +0, -0,043 |
| >18–30 | +0, -0,052 |

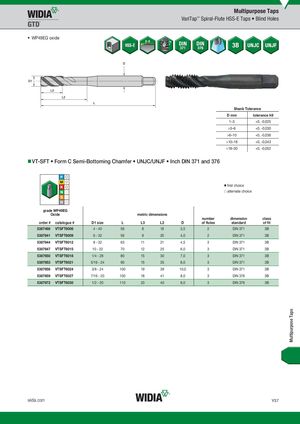

VT-SFT Form C Semi-Bottoming Chamfer UNJC/UNJF Inch DIN 371 and 376
first choice alternate choice
grade WP49EGWP49EG
| WP49EG grade WP49EG Oxide order # catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes | dimension standard | class of fit |
| 5387488 VTSFT6006 | 4 - 40 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 3B |
| 5387641 VTSFT6009 | 6 - 32 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 3B |
| 5387644 VTSFT6012 | 8 - 32 | 63 | 11 | 21 | 4,5 | 3 | DIN 371 | 3B |
| 5387647 VTSFT6015 | 10 - 32 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 3B |
| 5387650 VTSFT6018 | 1/4 - 28 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 3B |
| 5387653 VTSFT6021 | 5/16 - 24 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 3B |
| 5387656 VTSFT6024 | 3/8 - 24 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 3B |
| 5387659 VTSFT6027 | 7/16 - 20 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 3B |
| 5387672 VTSFT6030 | 1/2 - 20 | 110 | 23 | 40 | 9,0 | 3 | DIN 376 | 3B |
