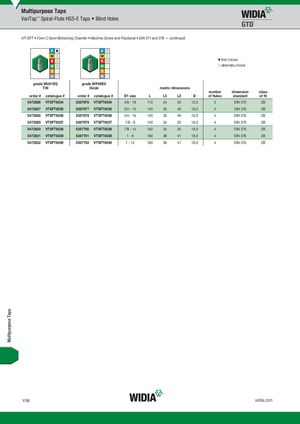

(VT-SFT • Form C Semi-Bottoming Chamfer • Machine Screw and Fractional • DIN 371 and 376 — continued)
| WU41EG grade WU41EG TiN order # catalogue # | WP49EG grade WP49EG Oxide order # catalogue # | D1 size | L | metric L3 | dimensio L2 | ns D | �first �alte number of flutes | i choice rnate choice dimension standard | class of fit |
| 5472626 VTSFT6034 | 5387676 VTSFT6034 | 5/8 - 18 | 110 | 24 | 35 | 12,0 | 3 | DIN 376 | 2B |
| 5472627 VTSFT6035 | 5387677 VTSFT6035 | 3/4 - 10 | 140 | 30 | 46 | 16,0 | 4 | DIN 376 | 2B |
| 5472628 VTSFT6036 | 5387678 VTSFT6036 | 3/4 - 16 | 140 | 30 | 46 | 16,0 | 4 | DIN 376 | 2B |
| 5472629 VTSFT6037 | 5387679 VTSFT6037 | 7/8 - 9 | 140 | 34 | 35 | 18,0 | 4 | DIN 376 | 2B |
| 5472630 VTSFT6038 | 5387700 VTSFT6038 | 7/8 - 14 | 140 | 34 | 35 | 18,0 | 4 | DIN 376 | 2B |
| 5472631 VTSFT6039 | 5387701 VTSFT6039 | 1 - 8 | 160 | 38 | 41 | 18,0 | 4 | DIN 376 | 2B |
| 5472632 VTSFT6040 | 5387702 VTSFT6040 | 1 - 12 | 160 | 38 | 41 | 18,0 | 4 | DIN 376 | 2B |
