- WU41EG TiN.
- WP49EG oxide.
| Shank Tolerance |
| D mm tolerance h9 |
| 1–3 +0, -0,025 |
| >3–6 +0, -0,030 |
| >6–10 +0, -0,036 |
| >10–18 +0, -0,043 |
| >18–30 +0, -0,052 |

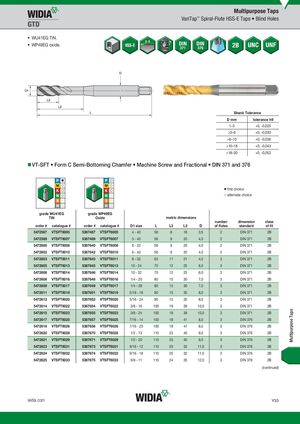

VT-SFT Form C Semi-Bottoming Chamfer Machine Screw and Fractional DIN 371 and 376
first choice alternate choice
grade WU41EGWU41EG grade WP49EGWP49EG
TiN Oxide metric dimensions
| WU41EG grade WU41EG TiN | WP49EG grade WP49EG Oxide | metric | dimensio | ns | |||||
| order # catalogue # | order # catalogue # | D1 size | L | L3 | L2 | D | number of flutes | dimension standard | class of fit |
| 5472587 VTSFT6005 | 5387487 VTSFT6005 | 4 - 40 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 2B |
| 5472589 VTSFT6007 | 5387489 VTSFT6007 | 5 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| 5472600 VTSFT6008 | 5387640 VTSFT6008 | 6 - 32 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| 5472602 VTSFT6010 | 5387642 VTSFT6010 | 6 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| 5472603 VTSFT6011 | 5387643 VTSFT6011 | 8 - 32 | 63 | 11 | 21 | 4,5 | 3 | DIN 371 | 2B |
| 5472605 VTSFT6013 | 5387645 VTSFT6013 | 10 - 24 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 2B |
| 5472606 VTSFT6014 | 5387646 VTSFT6014 | 10 - 32 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 2B |
| 5472608 VTSFT6016 | 5387648 VTSFT6016 | 1/4 - 20 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B |
| 5472609 VTSFT6017 | 5387649 VTSFT6017 | 1/4 - 28 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B |
| 5472611 VTSFT6019 | 5387651 VTSFT6019 | 5/16 - 18 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B |
| 5472612 VTSFT6020 | 5387652 VTSFT6020 | 5/16 - 24 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B |
| 5472614 VTSFT6022 | 5387654 VTSFT6022 | 3/8 - 16 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B |
| 5472615 VTSFT6023 | 5387655 VTSFT6023 | 3/8 - 24 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B |
| 5472617 VTSFT6025 | 5387657 VTSFT6025 | 7/16 - 14 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B |
| 5472618 VTSFT6026 | 5387658 VTSFT6026 | 7/16 - 20 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B |
| 5472620 VTSFT6028 | 5387670 VTSFT6028 | 1/2 - 13 | 110 | 23 | 40 | 9,0 | 3 | DIN 376 | 2B |
| 5472621 VTSFT6029 | 5387671 VTSFT6029 | 1/2 - 20 | 110 | 23 | 40 | 9,0 | 3 | DIN 376 | 2B |
| 5472623 VTSFT6031 | 5387673 VTSFT6031 | 9/16 - 12 | 110 | 25 | 32 | 11,0 | 3 | DIN 376 | 2B |
| 5472624 VTSFT6032 | 5387674 VTSFT6032 | 9/16 - 18 | 110 | 25 | 32 | 11,0 | 3 | DIN 376 | 2B |
| 5472625 VTSFT6033 | 5387675 VTSFT6033 | 5/8 - 11 | 110 | 24 | 35 | 12,0 | 3 | DIN 376 | 2B |
