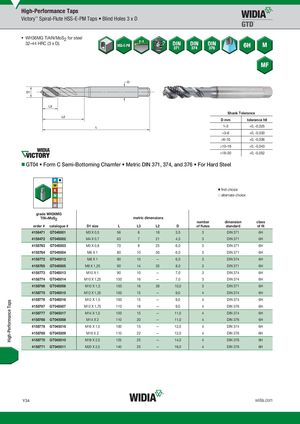

Victory™ Spiral-Flute HSS-E-PM Taps Blind Holes 3 x D
- WH36MG TiAlN/MoS2 for steel 32–44 HRC (3 x D).
| Shank To | lerance |
| D mm | tolerance h9 |
| 1–3 | +0, -0,025 |
| >3–6 | +0, -0,030 |
| >6–10 | +0, -0,036 |
| >10–18 | +0, -0,043 |
| >18–30 | +0, -0,052 |
GT04 Form C Semi-Bottoming Chamfer Metric DIN 371, 374, and 376 For Hard Steel
first choice alternate choice
grade WH36MGWH36MG
| WH36MG grade WH36MG TiN+MoS2 order # catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes | dimension standard | class of fit |
| 4158471 GT045001 | M3 X 0,5 | 56 | 6 | 18 | 3,5 | 3 | DIN 371 | 6H |
| 4158472 GT045002 | M4 X 0,7 | 63 | 7 | 21 | 4,5 | 3 | DIN 371 | 6H |
| 4158763 GT045003 | M5 X 0,8 | 70 | 8 | 25 | 6,0 | 3 | DIN 371 | 6H |
| 4158764 GT045004 | M6 X 1 | 80 | 10 | 30 | 6,0 | 3 | DIN 371 | 6H |
| 4158772 GT045012 | M8 X 1 | 90 | 10 | — | 6,0 | 3 | DIN 374 | 6H |
| 4158765 GT045005 | M8 X 1,25 | 90 | 14 | 35 | 8,0 | 3 | DIN 371 | 6H |
| 4158773 GT045013 | M10 X 1 | 90 | 10 | — | 7,0 | 3 | DIN 374 | 6H |
| 4158774 GT045014 | M10 X 1,25 | 100 | 16 | — | 7,0 | 3 | DIN 374 | 6H |
| 4158766 GT045006 | M10 X 1,5 | 100 | 16 | 39 | 10,0 | 3 | DIN 371 | 6H |
| 4158775 GT045015 | M12 X 1,25 | 100 | 15 | — | 9,0 | 4 | DIN 374 | 6H |
| 4158776 GT045016 | M12 X 1,5 | 100 | 15 | — | 9,0 | 4 | DIN 374 | 6H |
| 4158767 GT045007 | M12 X 1,75 | 110 | 18 | — | 9,0 | 4 | DIN 376 | 6H |
| 4158777 GT045017 | M14 X 1,5 | 100 | 15 | — | 11,0 | 4 | DIN 374 | 6H |
| 4158768 GT045008 | M14 X 2 | 110 | 20 | — | 11,0 | 4 | DIN 376 | 6H |
| 4158778 GT045018 | M16 X 1,5 | 100 | 15 | — | 12,0 | 4 | DIN 374 | 6H |
| 4158769 GT045009 | M16 X 2 | 110 | 22 | — | 12,0 | 4 | DIN 376 | 6H |
| 4158770 GT045010 | M18 X 2,5 | 125 | 25 | — | 14,0 | 4 | DIN 376 | 6H |
| 4158771 GT045011 | M20 X 2,5 | 140 | 25 | — | 16,0 | 4 | DIN 376 | 6H |
