- WP31MG TiN for steel 32–44 HRC.
| Shank Tolerance |
| D mm tolerance h9 |
| 1–3 +0, -0,025 |
| >3–6 +0, -0,030 |
| >6–10 +0, -0,036 |
| >10–18 +0, -0,043 |
| >18–30 +0, -0,052 |

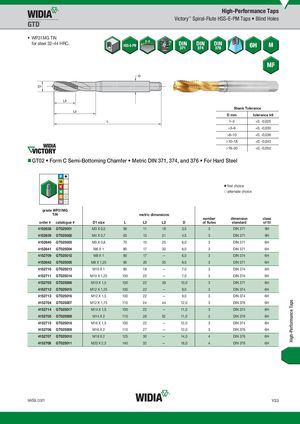

GT02 Form C Semi-Bottoming Chamfer Metric DIN 371, 374, and 376 For Hard Steel
first choice alternate choice
grade WP31MGWP31MG
| WP31MG grade WP31MG TiN | metric di | mensions | ||||||
| order # catalogue # | D1 size | L | L3 | L2 | D | number of flutes | dimension standard | class of fit |
| 4152638 GT025001 | M3 X 0,5 | 56 | 11 | 18 | 3,5 | 3 | DIN 371 | 6H |
| 4152639 GT025002 | M4 X 0,7 | 63 | 13 | 21 | 4,5 | 3 | DIN 371 | 6H |
| 4152640 GT025003 | M5 X 0,8 | 70 | 15 | 25 | 6,0 | 3 | DIN 371 | 6H |
| 4152641 GT025004 | M6 X 1 | 80 | 17 | 30 | 6,0 | 3 | DIN 371 | 6H |
| 4152709 GT025012 | M8 X 1 | 90 | 17 | — | 6,0 | 3 | DIN 374 | 6H |
| 4152642 GT025005 | M8 X 1,25 | 90 | 20 | 35 | 8,0 | 3 | DIN 371 | 6H |
| 4152710 GT025013 | M10 X 1 | 90 | 18 | — | 7,0 | 3 | DIN 374 | 6H |
| 4152711 GT025014 | M10 X 1,25 | 100 | 22 | — | 7,0 | 3 | DIN 374 | 6H |
| 4152703 GT025006 | M10 X 1,5 | 100 | 22 | 39 | 10,0 | 3 | DIN 371 | 6H |
| 4152712 GT025015 | M12 X 1,25 | 100 | 22 | — | 9,0 | 3 | DIN 374 | 6H |
| 4152713 GT025016 | M12 X 1,5 | 100 | 22 | — | 9,0 | 3 | DIN 374 | 6H |
| 4152704 GT025007 | M12 X 1,75 | 110 | 24 | 44 | 12,0 | 3 | DIN 376 | 6H |
| 4152714 GT025017 | M14 X 1,5 | 100 | 22 | — | 11,0 | 3 | DIN 374 | 6H |
| 4152705 GT025008 | M14 X 2 | 110 | 26 | 52 | 11,0 | 3 | DIN 376 | 6H |
| 4152715 GT025018 | M16 X 1,5 | 100 | 22 | — | 12,0 | 3 | DIN 374 | 6H |
| 4152706 GT025009 | M16 X 2 | 110 | 27 | — | 12,0 | 3 | DIN 376 | 6H |
| 4152707 GT025010 | M18 X 2 | 125 | 30 | — | 14,0 | 4 | DIN 376 | 6H |
| 4152708 GT025011 | M20 X 2,5 | 140 | 32 | — | 16,0 | 4 | DIN 376 | 6H |
