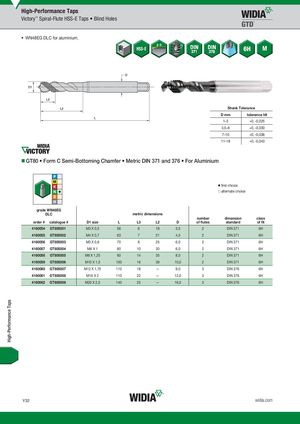

Victory™ Spiral-Flute HSS-E Taps Blind Holes
- WN48EG DLC for aluminium.
Shank Tolerance
| D mm | tolerance h9 |
| 1–3 | +0, -0,025 |
| 3,5–6 | +0, -0,030 |
| 7–10 | +0, -0,036 |
| 11–18 | +0, -0,043 |
GT80 Form C Semi-Bottoming Chamfer Metric DIN 371 and 376 For Aluminium
first choice alternate choice
grade WN48EGWN48EG
| WN48EG grade WN48EG DLC order # catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes | dimension standard | class of fit |
| 4160054 GT805001 | M3 X 0,5 | 56 | 6 | 18 | 3,5 | 2 | DIN 371 | 6H |
| 4160055 GT805002 | M4 X 0,7 | 63 | 7 | 21 | 4,5 | 2 | DIN 371 | 6H |
| 4160056 GT805003 | M5 X 0,8 | 70 | 8 | 25 | 6,0 | 2 | DIN 371 | 6H |
| 4160057 GT805004 | M6 X 1 | 80 | 10 | 30 | 6,0 | 2 | DIN 371 | 6H |
| 4160058 GT805005 | M8 X 1,25 | 90 | 14 | 35 | 8,0 | 2 | DIN 371 | 6H |
| 4160059 GT805006 | M10 X 1,5 | 100 | 16 | 39 | 10,0 | 2 | DIN 371 | 6H |
| 4160060 GT805007 | M12 X 1,75 | 110 | 18 | — | 9,0 | 3 | DIN 376 | 6H |
| 4160061 GT805008 | M16 X 2 | 110 | 22 | — | 12,0 | 3 | DIN 376 | 6H |
| 4160062 GT805009 | M20 X 2,5 | 140 | 25 | — | 16,0 | 3 | DIN 376 | 6H |
