- WN35MG TiN/DLC for titanium and titanium alloys.
| Shank To | lerance |
| D mm | tolerance h9 |
| 1–3 | +0, -0,025 |
| >3–6 | +0, -0,030 |
| >6–10 | +0, -0,036 |
| >10–18 | +0, -0,043 |
| >18–30 | +0, -0,052 |

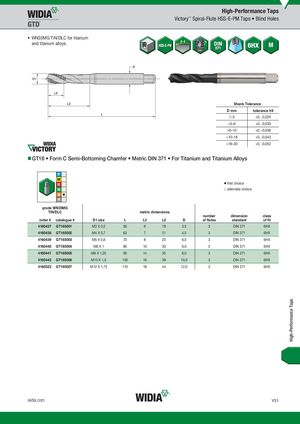

GT16 Form C Semi-Bottoming Chamfer Metric DIN 371 For Titanium and Titanium Alloys
first choice alternate choice
grade WN35MGWN35MG
| WN3 grade TiN order # | 5MG WN35MG /DLC catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes | dimension standard | class of fit |
| 4160437 | GT165001 | M3 X 0,5 | 56 | 6 | 18 | 3,5 | 3 | DIN 371 | 6HX |
| 4160438 | GT165002 | M4 X 0,7 | 63 | 7 | 21 | 4,5 | 3 | DIN 371 | 6HX |
| 4160439 | GT165003 | M5 X 0,8 | 70 | 8 | 25 | 6,0 | 3 | DIN 371 | 6HX |
| 4160440 | GT165004 | M6 X 1 | 80 | 10 | 30 | 6,0 | 3 | DIN 371 | 6HX |
| 4160441 | GT165005 | M8 X 1,25 | 90 | 14 | 35 | 8,0 | 3 | DIN 371 | 6HX |
| 4160442 | GT165006 | M10 X 1,5 | 100 | 16 | 39 | 10,0 | 3 | DIN 371 | 6HX |
| 4160523 | GT165007 | M12 X 1,75 | 110 | 18 | 44 | 12,0 | 3 | DIN 371 | 6HX |
