- Material Overview • DIN
- WU40EG bright
3–5
- WU41EG TiN
- WP42EG TiCN
- WP49EG oxide
Shank Tolerance D mm tolerance h9 1–3 +0, -0,025 >3–6 +0, -0,030 >6–10 +0, -0,036 >10–18 +0, -0,043 >18–30 +0, -0,052

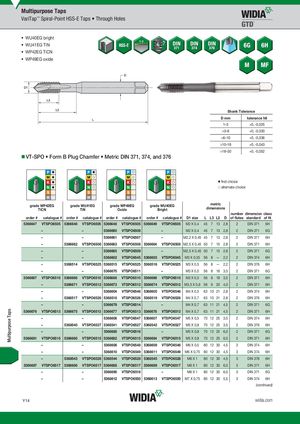

VT-SPO Form B Plug Chamfer Metric DIN 371, 374, and 376
first choice alternate choice
grade WP42EGWP42EG grade WU41EGWU41EG grade WP49EGWP49EG grade WU40EGWU40EG metric
TiCN TiN Oxide Bright dimensions
number dimension class
| order # catalogue # order # catalogue # order # catalogue # order # catalogue # | D1 size | L L3 L2 | D | of flutes | standard | of fit | ||
| 5366647 VTSPO6505 | 5366646 VTSPO6505 5366648 VTSPO6505 5366649 VTSPO6505 | M2 X 0,4 | 45 7 13 2,8 | 2 | DIN 371 | 6H |
- 5366660 VTSPO6506
- M2 X 0,4 45 7 13 2,8 2 DIN 371 6G
- 5366661 VTSPO6507
- M2,2 X 0,45 45 7 13 2,8 2 DIN 371 6H
- 5366662 VTSPO6508 5366663 VTSPO6508 5366664 VTSPO6508 M2,5 X 0,45 50 7 15 2,8 2 DIN 371 6H
- 5366665 VTSPO6509
- M2,5 X 0,45 50 7 15 2,8 2 DIN 371 6G
- 5368602 VTSPO6545 5368603 VTSPO6545 M3 X 0,35 56 8 — 2,2 2 DIN 374 6H
- 5368514 VTSPO6525 5368515 VTSPO6525 5368516 VTSPO6525 M3 X 0,5 56 8 — 2,2 2 DIN 376 6H
- 5366670 VTSPO6511
- M3 X 0,5 56 8 18 3,5 2 DIN 371 6G
5366667 VTSPO6510 5366666 VTSPO6510 5366668 VTSPO6510 5366669 VTSPO6510 M3 X 0,5 56 8 18 3,5 2 DIN 371 6H
- 5366671 VTSPO6512 5366673 VTSPO6512 5366674 VTSPO6512 M3,5 X 0,6 56 9 20 4,0 2 DIN 371 6H
- 5368604 VTSPO6546 5368605 VTSPO6546 M4 X 0,5 63 10 21 2,8 2 DIN 374 6H
- 5368517 VTSPO6526 5368518 VTSPO6526 5368519 VTSPO6526 M4 X 0,7 63 10 21 2,8 2 DIN 376 6H
- 5366679 VTSPO6514
- M4 X 0,7 63 11 21 4,5 2 DIN 371 6G
5366676 VTSPO6513 5366675 VTSPO6513 5366677 VTSPO6513 5366678 VTSPO6513 M4 X 0,7 63 11 21 4,5 2 DIN 371 6H
- 5368606 VTSPO6547 5368607 VTSPO6547 M5 X 0,5 70 12 25 3,5 2 DIN 374 6H
- 5368540 VTSPO6527 5368541 VTSPO6527 5368542 VTSPO6527 M5 X 0,8 70 12 25 3,5 2 DIN 376 6H
- 5366685 VTSPO6516
- M5 X 0,8 70 12 25 6,0 2 DIN 371 6G
5366681 VTSPO6515 5366680 VTSPO6515 5366682 VTSPO6515 5366684 VTSPO6515 M5 X 0,8 70 12 25 6,0 2 DIN 371 6H
- 5368608 VTSPO6548 5368609 VTSPO6548 M6 X 0,5 80 12 30 4,5 3 DIN 374 6H
- 5368610 VTSPO6549 5368611 VTSPO6549 M6 X 0,75 80 12 30 4,5 3 DIN 374 6H
- 5368543 VTSPO6528 5368544 VTSPO6528 5368545 VTSPO6528 M6 X 1 80 12 30 4,5 3 DIN 376 6H
5366687 VTSPO6517 5366686 VTSPO6517 5366688 VTSPO6517 5366689 VTSPO6517 M6 X 1 80 12 30 6,0 3 DIN 371 6H
- 5366690 VTSPO6518
- M6 X 1 80 12 30 6,0 3 DIN 371 6G
- 5368612 VTSPO6550 5368613 VTSPO6550 M7 X 0,75 80 12 30 5,5 3 DIN 374 6H
(continued)
