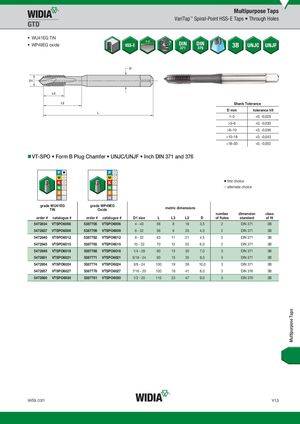

Общий каталог Widia 2017 - страница 1717
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- WU41EG TiN
3–5
- WP49EG oxide
| Shank To | lerance |
| D mm | tolerance h9 |
| 1–3 | +0, -0,025 |
| >3–6 | +0, -0,030 |
| >6–10 | +0, -0,036 |
| >10–18 | +0, -0,043 |
| >18–30 | +0, -0,052 |
VT-SPO Form B Plug Chamfer UNJC/UNJF Inch DIN 371 and 376
first choice alternate choice
grade WU41EGWU41EG grade WP49EGWP49EG metric dimensions
| WU41EG W grade WU41EG TiN order # catalogue # grade O order # | P49EG WP49EG xide catalogue # | D1 size | L | L3 metric di | L2 mension | D s | number of flutes | dimension standard | class of fit |
| 5472634 VTSPO6006 5387705 | VTSPO6006 | 4 - 40 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 3B |
| 5472637 VTSPO6009 5387709 | VTSPO6009 | 6 - 32 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 3B |
| 5472640 VTSPO6012 5387762 | VTSPO6012 | 8 - 32 | 63 | 11 | 21 | 4,5 | 2 | DIN 371 | 3B |
| 5472645 VTSPO6015 5387765 | VTSPO6015 | 10 - 32 | 70 | 12 | 25 | 6,0 | 2 | DIN 371 | 3B |
| 5472648 VTSPO6018 5387768 | VTSPO6018 | 1/4 - 28 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 3B |
| 5472651 VTSPO6021 5387771 | VTSPO6021 | 5/16 - 24 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 3B |
| 5472654 VTSPO6024 5387774 | VTSPO6024 | 3/8 - 24 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 3B |
| 5472657 VTSPO6027 5387778 | VTSPO6027 | 7/16 - 20 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 3B |
| 5472660 VTSPO6030 5387781 | VTSPO6030 | 1/2 - 20 | 110 | 23 | 47 | 9,0 | 3 | DIN 376 | 3B |
