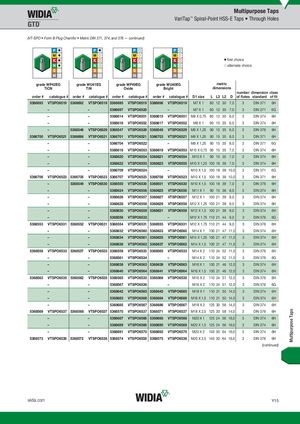

(VT-SPO • Form B Plug Chamfer • Metric DIN 371, 374, and 376 — continued)
first choice alternate choice
| WP42EG WU grade WP42EG TiCN grade | 41EG WU41EG TiN | WP49EG W grade WP49EG Oxide grade B | U40EG WU40EG right | met dimen | ric sions | nmbe | dimension | class | |
| order # catalogue # order # | catalogue # | order # catalogue # order # | catalogue # | D1 size | L L3 | L2 D | u of flutes | l standard | of fit |
| 5366693 VTSPO6519 5366692 | VTSPO6519 | 5366695 VTSPO6519 5366696 | VTSPO6519 | M7 X 1 | 80 12 | 30 7,0 | 3 | DIN 371 | 6H |
| – | – | 5366697 VTSPO6520 | – | M7 X 1 | 80 12 | 30 7,0 | 3 | DIN 371 | 6G |
| – | – | 5368614 VTSPO6551 5368615 | VTSPO6551 | M8 X 0,75 | 80 12 | 30 6,0 | 3 | DIN 374 | 6H |
| – | – | 5368616 VTSPO6552 5368617 | VTSPO6552 | M8 X 1 | 90 15 | 35 6,0 | 3 | DIN 374 | 6H |
| – 5368546 | VTSPO6529 | 5368547 VTSPO6529 5368548 | VTSPO6529 | M8 X 1,25 | 90 15 | 35 6,0 | 3 | DIN 376 | 6H |
| 5366700 VTSPO6521 5366698 | VTSPO6521 | 5366701 VTSPO6521 5366703 | VTSPO6521 | M8 X 1,25 | 90 15 | 35 8,0 | 3 | DIN 371 | 6H |
| – | – | 5366704 VTSPO6522 | – | M8 X 1,25 | 90 15 | 35 8,0 | 3 | DIN 371 | 6G |
| – | – | 5368618 VTSPO6553 5368619 | VTSPO6553 | M10 X 0,75 | 90 15 | 35 7,0 | 3 | DIN 374 | 6H |
| – | – | 5368620 VTSPO6554 5368621 | VTSPO6554 | M10 X 1 | 90 15 | 35 7,0 | 3 | DIN 374 | 6H |
| – | – | 5368622 VTSPO6555 5368623 | VTSPO6555 | M10 X 1,25 | 100 18 | 39 7,0 | 3 | DIN 374 | 6H |
| – | – | 5366709 VTSPO6524 | – | M10 X 1,5 | 100 18 | 39 10,0 | 3 | DIN 371 | 6G |
| 5366706 VTSPO6523 5366705 | VTSPO6523 | 5366707 VTSPO6523 5366708 | VTSPO6523 | M10 X 1,5 | 100 18 | 39 10,0 | 3 | DIN 371 | 6H |
| – 5368549 | VTSPO6530 | 5368550 VTSPO6530 5368551 | VTSPO6530 | M10 X 1,5 | 100 18 | 39 7,0 | 3 | DIN 376 | 6H |
| – | – | 5368624 VTSPO6556 5368625 | VTSPO6556 | M11 X 1 | 90 15 | 36 8,0 | 3 | DIN 374 | 6H |
| – | – | 5368626 VTSPO6557 5368627 | VTSPO6557 | M12 X 1 | 100 21 | 39 9,0 | 3 | DIN 374 | 6H |
| – | – | 5368628 VTSPO6558 5368629 | VTSPO6558 | M12 X 1,25 | 100 21 | 39 9,0 | 3 | DIN 374 | 6H |
| – | – | 5368630 VTSPO6559 5368631 | VTSPO6559 | M12 X 1,5 | 100 21 | 39 9,0 | 3 | DIN 374 | 6H |
| – | – | 5368556 VTSPO6532 | – | M12 X 1,75 | 110 21 | 44 9,0 | 3 | DIN 376 | 6G |
| 5368553 VTSPO6531 5368552 | VTSPO6531 | 5368554 VTSPO6531 5368555 | VTSPO6531 | M12 X 1,75 | 110 21 | 44 9,0 | 3 | DIN 376 | 6H |
| – | – | 5368632 VTSPO6560 5368633 | VTSPO6560 | M14 X 1 | 100 21 | 47 11,0 | 3 | DIN 374 | 6H |
| – | – | 5368634 VTSPO6561 5368635 | VTSPO6561 | M14 X 1,25 | 100 21 | 47 11,0 | 3 | DIN 374 | 6H |
| – | – | 5368636 VTSPO6562 5368637 | VTSPO6562 | M14 X 1,5 | 100 21 | 47 11,0 | 3 | DIN 374 | 6H |
| 5368558 VTSPO6533 5368557 | VTSPO6533 | 5368559 VTSPO6533 5368560 | VTSPO6533 | M14 X 2 | 110 24 | 52 11,0 | 3 | DIN 376 | 6H |
| – | – | 5368561 VTSPO6534 | – | M14 X 2 | 110 24 | 52 11,0 | 3 | DIN 376 | 6G |
| – | – | 5368638 VTSPO6563 5368639 | VTSPO6563 | M16 X 1 | 100 21 | 46 12,0 | 3 | DIN 374 | 6H |
| – | – | 5368640 VTSPO6564 5368641 | VTSPO6564 | M16 X 1,5 | 100 21 | 46 12,0 | 3 | DIN 374 | 6H |
| 5368563 VTSPO6535 5368562 | VTSPO6535 | 5368565 VTSPO6535 5368566 | VTSPO6535 | M16 X 2 | 110 24 | 51 12,0 | 3 | DIN 376 | 6H |
| – | – | 5368567 VTSPO6536 | – | M16 X 2 | 110 24 | 51 12,0 | 3 | DIN 376 | 6G |
| – | – | 5368642 VTSPO6565 5368643 | VTSPO6565 | M18 X 1 | 110 21 | 50 14,0 | 3 | DIN 374 | 6H |
| – | – | 5368683 VTSPO6566 5368684 | VTSPO6566 | M18 X 1,5 | 110 21 | 50 14,0 | 3 | DIN 374 | 6H |
| – | – | 5368685 VTSPO6567 5368686 | VTSPO6567 | M18 X 2 | 125 30 | 58 14,0 | 3 | DIN 374 | 6H |
| 5368569 VTSPO6537 5368568 | VTSPO6537 | 5368570 VTSPO6537 5368571 | VTSPO6537 | M18 X 2,5 | 125 30 | 58 14,0 | 3 | DIN 376 | 6H |
| – | – | 5368687 VTSPO6568 5368688 | VTSPO6568 | M20 X 1 | 125 24 | 56 16,0 | 3 | DIN 374 | 6H |
| – | – | 5368689 VTSPO6569 5368690 | VTSPO6569 | M20 X 1,5 | 125 24 | 56 16,0 | 3 | DIN 374 | 6H |
| – | – | 5368691 VTSPO6570 5368692 | VTSPO6570 | M20 X 2 | 140 30 | 64 16,0 | 3 | DIN 374 | 6H |
| 5368573 VTSPO6538 5368572 | VTSPO6538 | 5368574 VTSPO6538 5368575 | VTSPO6538 | M20 X 2,5 | 140 30 | 64 16,0 | 3 | DIN 376 | 6H |
