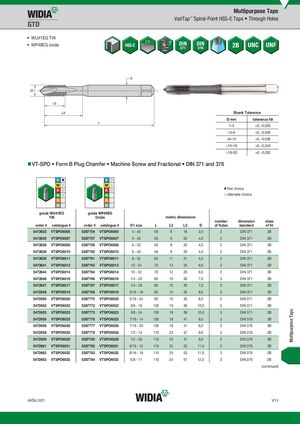

- WU41EG TiN
3–5
- WP49EG oxide
| Shank Tolerance |
| D mm tolerance h9 |
| 1–3 +0, -0,025 |
| >3–6 +0, -0,030 |
| >6–10 +0, -0,036 |
| >10–18 +0, -0,043 |
| >18–30 +0, -0,052 |
VT-SPO Form B Plug Chamfer Machine Screw and Fractional DIN 371 and 376
first choice alternate choice
grade WU41EGWU41EG grade WP49EGWP49EG
TiN Oxide metric dimensions
| WU41EG grade WU41EG TiN | WP49EG grade WP49EG Oxide | metric d | imensio | ns | |||||
| order # catalogue # | order # catalogue # | D1 size | L | L3 | L2 | D | number of flutes | dimension standard | class of fit |
| 5472633 VTSPO6005 | 5387704 VTSPO6005 | 4 - 40 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 2B |
| 5472635 VTSPO6007 | 5387707 VTSPO6007 | 5 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| 5472636 VTSPO6008 | 5387708 VTSPO6008 | 6 - 32 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| 5472638 VTSPO6010 | 5387760 VTSPO6010 | 6 - 40 | 56 | 9 | 20 | 4,0 | 2 | DIN 371 | 2B |
| 5472639 VTSPO6011 | 5387761 VTSPO6011 | 8 - 32 | 63 | 11 | 21 | 4,5 | 2 | DIN 371 | 2B |
| 5472641 VTSPO6013 | 5387763 VTSPO6013 | 10 - 24 | 70 | 12 | 25 | 6,0 | 2 | DIN 371 | 2B |
| 5472644 VTSPO6014 | 5387764 VTSPO6014 | 10 - 32 | 70 | 12 | 25 | 6,0 | 2 | DIN 371 | 2B |
| 5472646 VTSPO6016 | 5387766 VTSPO6016 | 1/4 - 20 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B |
| 5472647 VTSPO6017 | 5387767 VTSPO6017 | 1/4 - 28 | 80 | 15 | 30 | 7,0 | 3 | DIN 371 | 2B |
| 5472649 VTSPO6019 | 5387769 VTSPO6019 | 5/16 - 18 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B |
| 5472650 VTSPO6020 | 5387770 VTSPO6020 | 5/16 - 24 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 2B |
| 5472652 VTSPO6022 | 5387772 VTSPO6022 | 3/8 - 16 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B |
| 5472653 VTSPO6023 | 5387773 VTSPO6023 | 3/8 - 24 | 100 | 19 | 39 | 10,0 | 3 | DIN 371 | 2B |
| 5472655 VTSPO6025 | 5387776 VTSPO6025 | 7/16 - 14 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B |
| 5472656 VTSPO6026 | 5387777 VTSPO6026 | 7/16 - 20 | 100 | 18 | 41 | 8,0 | 3 | DIN 376 | 2B |
| 5472658 VTSPO6028 | 5387779 VTSPO6028 | 1/2 - 13 | 110 | 23 | 47 | 9,0 | 3 | DIN 376 | 2B |
| 5472659 VTSPO6029 | 5387780 VTSPO6029 | 1/2 - 20 | 110 | 23 | 47 | 9,0 | 3 | DIN 376 | 2B |
| 5472661 VTSPO6031 | 5387782 VTSPO6031 | 9/16 - 12 | 110 | 25 | 53 | 11,0 | 3 | DIN 376 | 2B |
| 5472662 VTSPO6032 | 5387783 VTSPO6032 | 9/16 - 18 | 110 | 25 | 53 | 11,0 | 3 | DIN 376 | 2B |
| 5472663 VTSPO6033 | 5387784 VTSPO6033 | 5/8 - 11 | 110 | 24 | 51 | 12,0 | 3 | DIN 376 | 2B |
