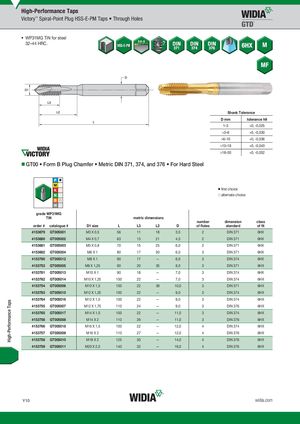

Victory™ Spiral-Point Plug HSS-E-PM Taps Through Holes

  • WP31MG TiN for steel 32–44 HRC.

Shank Tolerance D mm tolerance h9 1–3 +0, -0,025 >3–6 +0, -0,030 >6–10 +0, -0,036 >10–18 +0, -0,043 >18–30 +0, -0,052

„ GT00 Form B Plug Chamfer Metric DIN 371, 374, and 376 For Hard Steel

first choice alternate choice

grade WP31MGWP31MG TiN metric dimensions

number dimension class

order # catalogue #D1 sizeLL3L2Dof flutesstandardof fit
4153679 GT005001M3 X 0,55611183,52DIN 3716HX
4153680 GT005002M4 X 0,76313214,52DIN 3716HX
4153681 GT005003M5 X 0,87015256,02DIN 3716HX
4153682 GT005004M6 X 18017306,03DIN 3716HX
4153760 GT005012M8 X 19017—6,03DIN 3746HX
4153753 GT005005M8 X 1,259020358,03DIN 3716HX
4153761 GT005013M10 X 19018—7,03DIN 3746HX
4153762 GT005014M10 X 1,2510022—7,03DIN 3746HX
4153754 GT005006M10 X 1,5100223910,03DIN 3716HX
4153763 GT005015M12 X 1,2510022—9,03DIN 3746HX
4153764 GT005016M12 X 1,510022—9,03DIN 3746HX
4153755 GT005007M12 X 1,7511024—9,03DIN 3766HX
4153765 GT005017M14 X 1,510022—11,03DIN 3746HX
4153756 GT005008M14 X 211026—11,03DIN 3766HX
4153766 GT005018M16 X 1,510022—12,04DIN 3746HX
4153757 GT005009M16 X 211027—12,04DIN 3766HX
4153758 GT005010M18 X 212530—14,04DIN 3766HX
4153759 GT005011M20 X 2,514032—16,04DIN 3766HX
