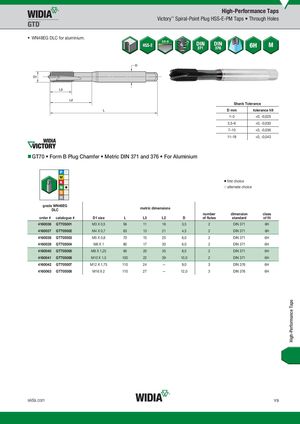

Victory ™ Spiral-Point Plug HSS-E-PM Taps Through Holes

  • WN48EG DLC for aluminium.
Shank Tolerance
D mm tolerance h9
1–3 +0, -0,025
3,5–6 +0, -0,030
7–10 +0, -0,036
11–18 +0, -0,043

„ GT70 Form B Plug Chamfer Metric DIN 371 and 376 For Aluminium

first choice alternate choice

grade WN48EGWN48EG metric dimensions

WN48EG grade WN48EG DLC order # catalogue #D1 sizeLL3 metric diL2 mensionsDnumber of flutesdimension standardclass of fit
4160036 GT705001M3 X 0,55611183,52DIN 3716H
4160037 GT705002M4 X 0,76313214,52DIN 3716H
4160038 GT705003M5 X 0,87015256,02DIN 3716H
4160039 GT705004M6 X 18017306,02DIN 3716H
4160040 GT705005M8 X 1,259020358,02DIN 3716H
4160041 GT705006M10 X 1,5100223910,02DIN 3716H
4160042 GT705007M12 X 1,7511024—9,03DIN 3766H
4160063 GT705008M16 X 211027—12,03DIN 3766H
