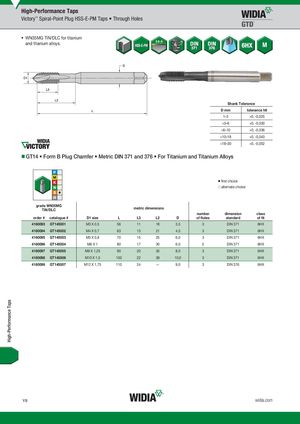

Victory™ Spiral-Point Plug HSS-E-PM Taps Through Holes
- WN35MG TiN/DLC for titanium and titanium alloys.
| Shank To | lerance |
| D mm | tolerance h9 |
| 1–3 | +0, -0,025 |
| >3–6 | +0, -0,030 |
| >6–10 | +0, -0,036 |
| >10–18 | +0, -0,043 |
| >18–30 | +0, -0,052 |
GT14 Form B Plug Chamfer Metric DIN 371 and 376 For Titanium and Titanium Alloys
first choice alternate choice
grade WN35MGWN35MG metric dimensions
| WN35MG grade WN35MG TiN/DLC order # catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes | dimension standard | class of fit |
| 4160093 GT145001 | M3 X 0,5 | 56 | 11 | 18 | 3,5 | 3 | DIN 371 | 6HX |
| 4160094 GT145002 | M4 X 0,7 | 63 | 13 | 21 | 4,5 | 3 | DIN 371 | 6HX |
| 4160095 GT145003 | M5 X 0,8 | 70 | 15 | 25 | 6,0 | 3 | DIN 371 | 6HX |
| 4160096 GT145004 | M6 X 1 | 80 | 17 | 30 | 6,0 | 3 | DIN 371 | 6HX |
| 4160097 GT145005 | M8 X 1,25 | 90 | 20 | 35 | 8,0 | 3 | DIN 371 | 6HX |
| 4160098 GT145006 | M10 X 1,5 | 100 | 22 | 39 | 10,0 | 3 | DIN 371 | 6HX |
| 4160099 GT145007 | M12 X 1,75 | 110 | 24 | — | 9,0 | 3 | DIN 376 | 6HX |
