- WS32MG TiCN for nickel and nickel alloys.
Shank Tolerance D mm tolerance h9 1–3 +0, -0,025 >3–6 +0, -0,030 >6–10 +0, -0,036 >10–18 +0, -0,043 >18–30 +0, -0,052

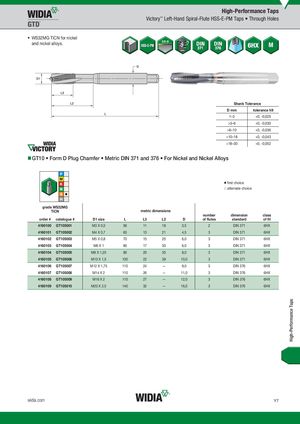

GT10 Form D Plug Chamfer Metric DIN 371 and 376 For Nickel and Nickel Alloys
first choice alternate choice
grade WS32MGWS32MG TiCN metric dimensions
number dimension class
| order # catalogue # | D1 size | L | L3 | L2 | D | of flutes | standard | of fit |
| 4160100 GT105001 | M3 X 0,5 | 56 | 11 | 18 | 3,5 | 2 | DIN 371 | 6HX |
| 4160101 GT105002 | M4 X 0,7 | 63 | 13 | 21 | 4,5 | 3 | DIN 371 | 6HX |
| 4160102 GT105003 | M5 X 0,8 | 70 | 15 | 25 | 6,0 | 3 | DIN 371 | 6HX |
| 4160103 GT105004 | M6 X 1 | 80 | 17 | 30 | 6,0 | 3 | DIN 371 | 6HX |
| 4160104 GT105005 | M8 X 1,25 | 90 | 20 | 35 | 8,0 | 3 | DIN 371 | 6HX |
| 4160105 GT105006 | M10 X 1,5 | 100 | 22 | 39 | 10,0 | 3 | DIN 371 | 6HX |
| 4160106 GT105007 | M12 X 1,75 | 110 | 24 | — | 9,0 | 3 | DIN 376 | 6HX |
| 4160107 GT105008 | M14 X 2 | 110 | 26 | — | 11,0 | 3 | DIN 376 | 6HX |
| 4160108 GT105009 | M16 X 2 | 110 | 27 | — | 12,0 | 3 | DIN 376 | 6HX |
| 4160109 GT105010 | M20 X 2,5 | 140 | 32 | — | 16,0 | 3 | DIN 376 | 6HX |
