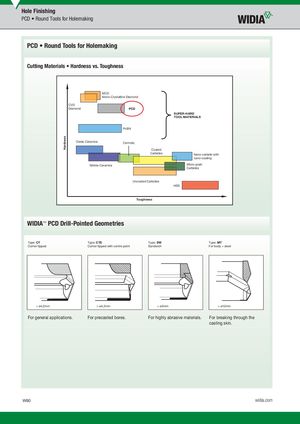

PCD • Round Tools for Holemaking
PCD • Round Tools for Holemaking
Cutting Materials • Hardness vs. Toughness
MCD Mono-Crystalline Diamond
CVD Diamond PCD
PcBN
Oxide Ceramics Cermets
Nitride Ceramics
Coated Carbides
SUPER-HARD TOOL MATERIALS
Nano-carbide with nano-coating Micro-grain Carbides
Uncoated Carbides HSS
Toughness
WIDIA™ PCD Drill-Pointed Geometries
| Type: CT | Type: CTE | Type: SW | Type: MT |
| Corner tipped | Corner tipped with centre point | Sandwich | For body = steel |
> ø4,2mm > ø4,2mm > ø5mm > ø12mm
For general applications. For precasted bores. For highly abrasive materials. For breaking through the
casting skin.
