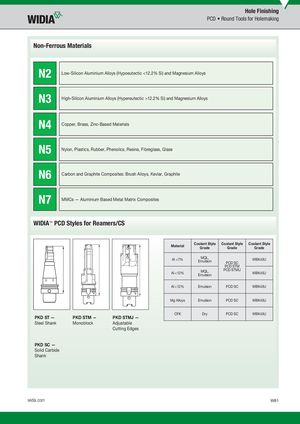

PCD • Round Tools for Holemaking
| Non-Ferr | ous Materials |
| N2 | Low-Silicon Aluminium Alloys (Hypoeutectic |
| N3 | High-Silicon Aluminium Alloys (Hypereutectic >12.2% Si) and Magnesium Alloys |
| N4 | Copper, Brass, Zinc-Based Materials |
| N5 | Nylon, Plastics, Rubber, Phenolics, Resins, Fibreglass, Glass |
| N6 | Carbon and Graphite Composites: Brush Alloys, Kevlar, Graphite |
| N7 | MMCs — Aluminium Based Metal Matrix Composites |
WIDIA™ PCD Styles for Reamers/CS
| Coolant Style | Coolant Style | Coolant Style | |
| Material |
Grade Grade Grade
| Material | Coolant Style Grade | Coolant Style Grade | Coolant Style Grade |
| Al | MQL, Emulsion | PCD SC PCD STM | WBK45U |
| Al | MQL, Emulsion | PCD STMU | WBK45U |
| Al | Emulsion | PCD SC | WBK45U |
| Mg Alloys | Emulsion | PCD SC | WBK45U |
| CFK | Dry | PCD SC | WBK45U |
| PKD ST — | PKD STM — | PKD STMJ — |
| Steel Shank | Monoblock | Adjustable |
Cutting Edges
PKD SC — Solid Carbide Shank
