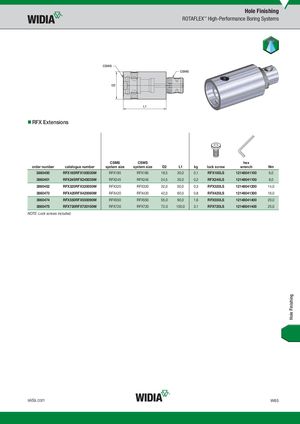

RFX Extensions
| order number | catalogue number | CSMS system size | CSWS system size | D2 | L1 | kg | lock screw | hex wrench | Nm |
| 3860450 | RFX185RFX185030M | RFX185 | RFX185 | 18,5 | 30,0 | 0,1 | RFX185LS | 12148041100 | 6,0 |
| 3860451 | RFX245RFX245035M | RFX245 | RFX245 | 24,5 | 35,0 | 0,2 | RFX245LS | 12148041100 | 8,0 |
| 3860452 | RFX320RFX320050M | RFX320 | RFX320 | 32,0 | 50,0 | 0,3 | RFX320LS | 12148041200 | 14,0 |
| 3860473 | RFX420RFX420060M | RFX420 | RFX420 | 42,0 | 60,0 | 0,8 | RFX420LS | 12148041300 | 16,0 |
| 3860474 | RFX550RFX550090M | RFX550 | RFX550 | 55,0 | 90,0 | 1,6 | RFX550LS | 12148041400 | 20,0 |
| 3860475 | RFX720RFX720100M | RFX720 | RFX720 | 72,0 | 100,0 | 3,1 | RFX720LS | 12148041400 | 25,0 |
