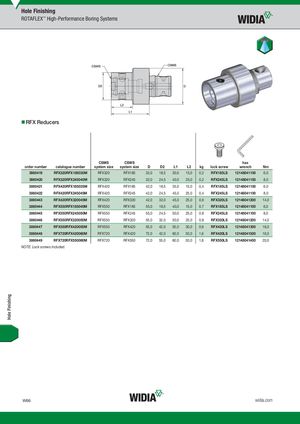

RFX Reducers
CSMS CSWS hex
| order number | catalogue number | system size | system size | D | D2 | L1 | L2 | kg | lock screw | wrench Nm | |
| 3860419 | RFX320RFX185030M | RFX320 | RFX185 | 32,0 | 18,5 | 30,0 | 15,0 | 0,2 | RFX185LS | 12148041100 | 6,0 |
| 3860420 | RFX320RFX245040M | RFX320 | RFX245 | 32,0 | 24,5 | 40,0 | 25,0 | 0,2 | RFX245LS | 12148041100 | 8,0 |
| 3860421 | RFX420RFX185035M | RFX420 | RFX185 | 42,0 | 18,5 | 35,0 | 15,0 | 0,4 | RFX185LS | 12148041100 | 6,0 |
| 3860422 | RFX420RFX245045M | RFX420 | RFX245 | 42,0 | 24,5 | 45,0 | 25,0 | 0,4 | RFX245LS | 12148041100 | 8,0 |
| 3860443 | RFX420RFX320045M | RFX420 | RFX320 | 42,0 | 32,0 | 45,0 | 25,0 | 0,6 | RFX320LS | 12148041200 | 14,0 |
| 3860444 | RFX550RFX185040M | RFX550 | RFX185 | 55,0 | 18,5 | 40,0 | 15,0 | 0,7 | RFX185LS | 12148041100 | 6,0 |
| 3860445 | RFX550RFX245050M | RFX550 | RFX245 | 55,0 | 24,5 | 50,0 | 25,0 | 0,8 | RFX245LS | 12148041100 | 8,0 |
| 3860446 | RFX550RFX320050M | RFX550 | RFX320 | 55,0 | 32,0 | 50,0 | 25,0 | 0,8 | RFX320LS | 12148041200 | 14,0 |
| 3860447 | RFX550RFX420055M | RFX550 | RFX420 | 55,0 | 42,0 | 55,0 | 30,0 | 0,9 | RFX420LS | 12148041300 | 16,0 |
| 3860448 | RFX720RFX420060M | RFX720 | RFX420 | 72,0 | 42,0 | 60,0 | 30,0 | 1,6 | RFX420LS | 12148041300 | 16,0 |
| 3860449 | RFX720RFX550060M | RFX720 | RFX550 | 72,0 | 55,0 | 60,0 | 30,0 | 1,8 | RFX550LS | 12148041400 | 20,0 |
NOTE: Lock screws included.
