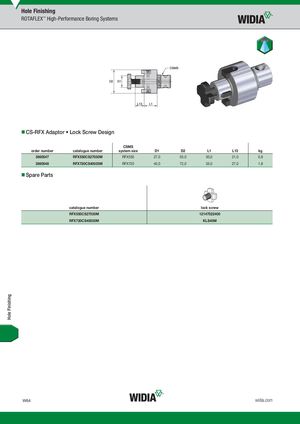

- CS-RFX Adaptor • Lock Screw Design
| order number | catalogue number | CSMS system size | D1 | D2 | L1 | L13 | kg |
| 3860547 | RFX550CS27030M | RFX550 | 27,0 | 55,0 | 30,0 | 21,0 | 0,9 |
| 3860548 | RFX720CS40035M | RFX720 | 40,0 | 72,0 | 35,0 | 27,0 | 1,8 |
- Spare Parts
catalogue number lock screw RFX550CS27030M 12147522400 RFX720CS40035M KLS40M
