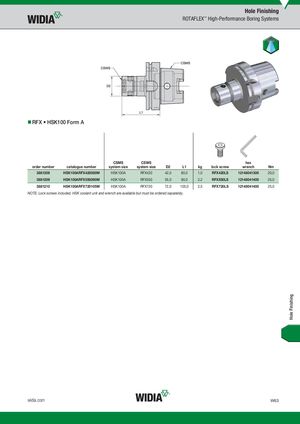

RFX • HSK100 Form A
CSMS CSWS hex
| order number | catalogue number | system size | system size | D2 | L1 | kg | lock screw | wrench | Nm | ||
| 3881208 | HSK100ARFX420080M | HSK100A | RFX420 | 42,0 | 80,0 | 1,0 | RFX420LS | 12148041300 | 20,0 | ||
| 3881209 | HSK100ARFX550090M | HSK100A | RFX550 | 55,0 | 90,0 | 2,2 | RFX550LS | 12148041400 | 25,0 | ||
| 3881210 | HSK100ARFX720105M | HSK100A | RFX720 | 72,0 | 105,0 | 2,5 | RFX720LS | 12148041400 | 25,0 |
NOTE: Lock screws included. HSK coolant unit and wrench are available but must be ordered separately.
