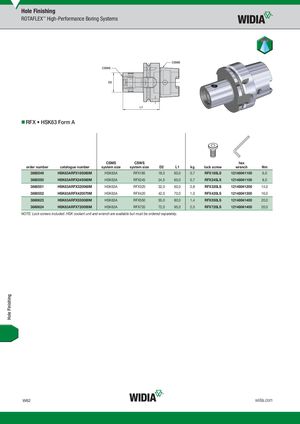

RFX • HSK63 Form A
| order number | catalogue number | CSMS system size | CSWS system size | D2 | L1 | kg | lock screw | hex wrench | Nm |
| 3860549 | HSK63ARFX185060M | HSK63A | RFX185 | 18,5 | 60,0 | 0,7 | RFX185LS | 12148041100 | 6,0 |
| 3860550 | HSK63ARFX245060M | HSK63A | RFX245 | 24,5 | 60,0 | 0,7 | RFX245LS | 12148041100 | 8,0 |
| 3860551 | HSK63ARFX320060M | HSK63A | RFX320 | 32,0 | 60,0 | 0,8 | RFX320LS | 12148041200 | 14,0 |
| 3860552 | HSK63ARFX420070M | HSK63A | RFX420 | 42,0 | 70,0 | 1,0 | RFX420LS | 12148041300 | 16,0 |
| 3860623 | HSK63ARFX550080M | HSK63A | RFX550 | 55,0 | 80,0 | 1,4 | RFX550LS | 12148041400 | 20,0 |
| 3860624 | HSK63ARFX720095M | HSK63A | RFX720 | 72,0 | 95,0 | 2,0 | RFX720LS | 12148041400 | 20,0 |
