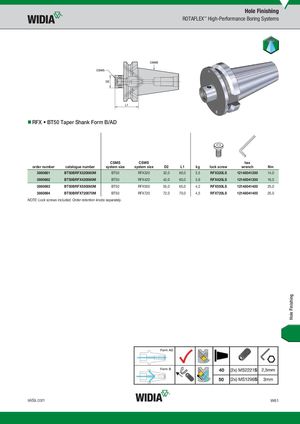

RFX • BT50 Taper Shank Form B/AD
CSMS CSWS hex
| order number | catalogue number | system size | system size | D2 | L1 | kg | lock screw | wrench | Nm | |||
| 3860681 | BT50BRFX320060M | BT50 | RFX320 | 32,0 | 60,0 | 3,5 | RFX320LS | 12148041200 | 14,0 | |||
| 3860682 | BT50BRFX420060M | BT50 | RFX420 | 42,0 | 60,0 | 3,9 | RFX420LS | 12148041300 | 16,0 | |||
| 3860693 | BT50BRFX550065M | BT50 | RFX550 | 55,0 | 65,0 | 4,2 | RFX550LS | 12148041400 | 25,0 | |||
| 3860694 | BT50BRFX720070M | BT50 | RFX720 | 72,0 | 70,0 | 4,5 | RFX720LS | 12148041400 | 25,0 |
NOTE: Lock screws included. Order retention knobs separately.
