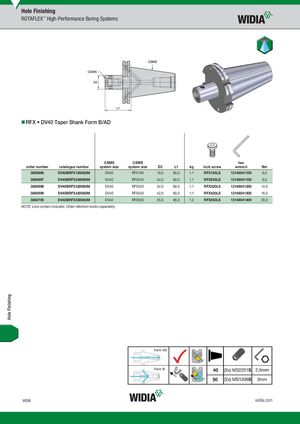

RFX • DV40 Taper Shank Form B/AD
| order number | catalogue number | CSMS system size | CSWS system size | D2 | L1 | kg | lock screw | hex wrench | Nm |
| 3860696 | DV40BRFX185060M | DV40 | RFX185 | 18,5 | 60,0 | 1,1 | RFX185LS | 12148041100 | 6,0 |
| 3860697 | DV40BRFX245060M | DV40 | RFX245 | 24,5 | 60,0 | 1,1 | RFX245LS | 12148041100 | 8,0 |
| 3860698 | DV40BRFX320060M | DV40 | RFX320 | 32,0 | 60,0 | 1,1 | RFX320LS | 12148041200 | 14,0 |
| 3860699 | DV40BRFX420060M | DV40 | RFX420 | 42,0 | 60,0 | 1,1 | RFX420LS | 12148041300 | 16,0 |
| 3860700 | DV40BRFX550065M | DV40 | RFX550 | 55,0 | 65,0 | 1,2 | RFX550LS | 12148041400 | 20,0 |
