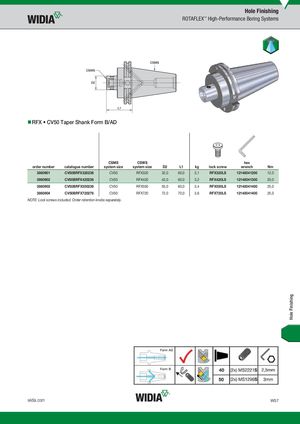

RFX • CV50 Taper Shank Form B/AD
CSMS CSWS hex
| order number | catalogue number | system size | system size | D2 | L1 | kg | lock screw | wrench | Nm | |||
| 3860901 | CV50BRFX320236 | CV50 | RFX320 | 32,0 | 60,0 | 3,1 | RFX320LS | 12148041200 | 12,0 | |||
| 3860902 | CV50BRFX420236 | CV50 | RFX420 | 42,0 | 60,0 | 3,2 | RFX420LS | 12148041300 | 20,0 | |||
| 3860903 | CV50BRFX550236 | CV50 | RFX550 | 55,0 | 60,0 | 3,4 | RFX550LS | 12148041400 | 25,0 | |||
| 3860904 | CV50BRFX720276 | CV50 | RFX720 | 72,0 | 70,0 | 3,6 | RFX720LS | 12148041400 | 25,0 |
NOTE: Lock screws included. Order retention knobs separately.
