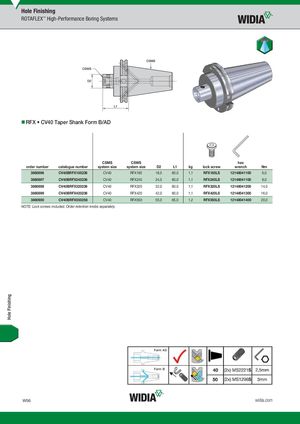

RFX • CV40 Taper Shank Form B/AD
| order number | catalogue number | CSMS system size | CSWS system size | D2 | L1 | kg | lock screw | hex wrench | Nm |
| 3860896 | CV40BRFX185236 | CV40 | RFX185 | 18,5 | 60,0 | 1,1 | RFX185LS | 12148041100 | 6,0 |
| 3860897 | CV40BRFX245236 | CV40 | RFX245 | 24,5 | 60,0 | 1,1 | RFX245LS | 12148041100 | 8,0 |
| 3860898 | CV40BRFX320236 | CV40 | RFX320 | 32,0 | 60,0 | 1,1 | RFX320LS | 12148041200 | 14,0 |
| 3860899 | CV40BRFX420236 | CV40 | RFX420 | 42,0 | 60,0 | 1,1 | RFX420LS | 12148041300 | 16,0 |
| 3860900 | CV40BRFX550256 | CV40 | RFX550 | 55,0 | 65,0 | 1,2 | RFX550LS | 12148041400 | 20,0 |
