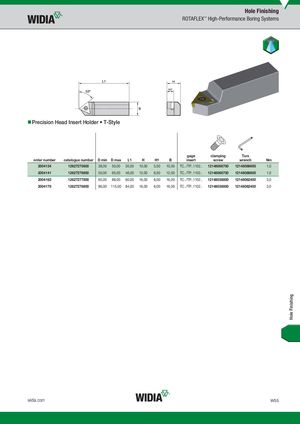

Precision Head Insert Holder • T-Style
| order number | catalogue number | D min | D max | L1 | H | H1 | B | gage insert | clamping screw | Torx wrench | Nm |
| 2004134 | 12627270800 | 38,00 | 50,00 | 35,00 | 10,00 | 5,50 | 10,00 | TC../TP..1102.. | 12148068700 | 12148086600 | 1,0 |
| 2004141 | 12627276800 | 50,00 | 65,00 | 46,00 | 12,00 | 6,50 | 12,00 | TC../TP..1102.. | 12148068700 | 12148086600 | 1,0 |
| 2004162 | 12627277800 | 65,00 | 88,00 | 60,00 | 16,00 | 8,00 | 16,00 | TC../TP..1102.. | 12148038800 | 12148082400 | 3,0 |
| 2004178 | 12627278800 | 86,00 | 115,00 | 84,00 | 16,00 | 8,00 | 16,00 | TC../TP..1102.. | 12148038800 | 12148082400 | 3,0 |
