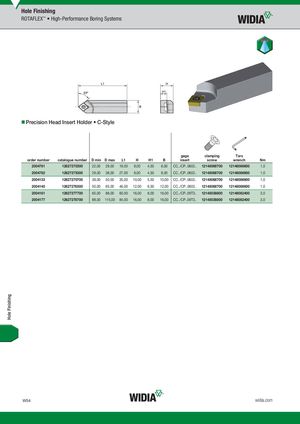

ROTAFLEX™ • High-Performance Boring Systems
Precision Head Insert Holder • C-Style
| order number | catalogue number | D min | D max | L1 | H | H1 | B | gage insert | clamping screw | Torx wrench | Nm |
| 2004781 | 12627270300 | 22,00 | 29,00 | 19,00 | 8,00 | 4,50 | 8,00 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
| 2004782 | 12627275300 | 29,00 | 38,00 | 27,00 | 8,00 | 4,50 | 8,00 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
| 2004133 | 12627270700 | 38,00 | 50,00 | 35,00 | 10,00 | 5,50 | 10,00 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
| 2004140 | 12627276500 | 50,00 | 65,00 | 46,00 | 12,00 | 6,50 | 12,00 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
| 2004161 | 12627277700 | 65,00 | 88,00 | 60,00 | 16,00 | 8,00 | 16,00 | CC../CP..09T3.. | 12148038800 | 12148082400 | 3,0 |
| 2004177 | 12627278700 | 88,00 | 115,00 | 84,00 | 16,00 | 8,00 | 16,00 | CC../CP..09T3.. | 12148038800 | 12148082400 | 3,0 |
