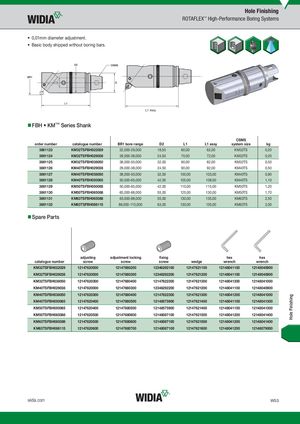

- 0,01mm diameter adjustment.
- Basic body shipped without boring bars.
L1 Assy
- FBH KM™ Series Shank
| order number | catalogue number | BR1 bore range | D2 | L1 | L1 assy | CSMS system size | kg |
| 3861123 | KM32TSFBH022029 | 22,000-29,000 | 18,50 | 60,00 | 62,00 | KM32TS | 0,20 |
| 3861124 | KM32TSFBH029038 | 29,000-38,000 | 24,50 | 70,00 | 72,00 | KM32TS | 0,20 |
| 3861125 | KM32TSFBH038050 | 38,000-50,000 | 32,00 | 80,00 | 82,00 | KM32TS | 0,50 |
| 3861126 | KM40TSFBH029038 | 29,000-38,000 | 24,50 | 90,00 | 92,00 | KM40TS | 0,50 |
| 3861127 | KM40TSFBH038050 | 38,000-50,000 | 32,00 | 100,00 | 103,00 | KM40TS | 0,90 |
| 3861128 | KM40TSFBH050065 | 50,000-65,000 | 42,00 | 105,00 | 108,00 | KM40TS | 1,10 |
| 3861129 | KM50TSFBH050065 | 50,000-65,000 | 42,00 | 110,00 | 115,00 | KM50TS | 1,20 |
| 3861130 | KM50TSFBH065088 | 65,000-88,000 | 55,00 | 125,00 | 130,00 | KM50TS | 1,70 |
| 3861131 | KM63TSFBH065088 | 65,000-88,000 | 55,00 | 130,00 | 135,00 | KM63TS | 2,50 |
| 3861132 | KM63TSFBH088115 | 88,000-115,000 | 63,00 | 130,00 | 135,00 | KM63TS | 2,00 |
- Spare Parts
| adjusting | adjustment locking | fixing | hex | hex | |||
| catalogue number | screw | screw | screw | wedge | wrench | wrench |
| catalogue number | adjusting screw | adjustment locking screw | fixing screw | wedge | hex wrench | hex wrench |
| KM32TSFBH022029 | 12147620000 | 12147680200 | 12346292100 | 12147621100 | 12148041100 | 12148040900 |
| KM32TSFBH029038 | 12147620000 | 12147680300 | 12346292200 | 12147621200 | 12148041100 | 12148040900 |
| KM32TSFBH038050 | 12147620300 | 12147680400 | 12147622300 | 12147621300 | 12148041200 | 12148041000 |
| KM40TSFBH029038 | 12147620000 | 12147680300 | 12346292200 | 12147621200 | 12148041100 | 12148040900 |
| KM40TSFBH038050 | 12147620300 | 12147680400 | 12147622300 | 12147621300 | 12148041200 | 12148041000 |
| KM40TSFBH050065 | 12147620400 | 12147680500 | 12148575900 | 12147621400 | 12148041100 | 12148041300 |
| KM50TSFBH050065 | 12147620400 | 12147680500 | 12148575900 | 12147621400 | 12148041100 | 12148041300 |
| KM50TSFBH065088 | 12147620500 | 12147680600 | 12148087100 | 12147621500 | 12148041200 | 12148041400 |
| KM63TSFBH065088 | 12147620500 | 12147680600 | 12148087100 | 12147621500 | 12148041200 | 12148041400 |
| KM63TSFBH088115 | 12147620600 | 12147680700 | 12148087100 | 12147621600 | 12148041200 | 12148079000 |
