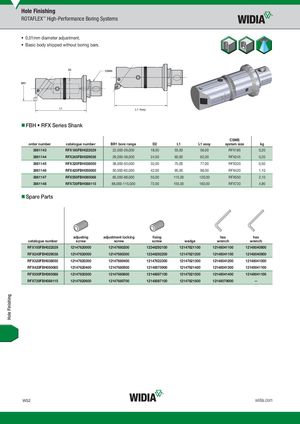

  • 0,01mm diameter adjustment.
  • Basic body shipped without boring bars.

L1 Assy

  • FBH RFX Series Shank
order numbercatalogue numberBR1 bore rangeD2L1L1 assyCSMS system sizekg
3861143RFX185FBH02202922,000-29,00018,5055,0056,00RFX1850,20
3861144RFX245FBH02903829,000-38,00024,5060,0062,00RFX2450,20
3861145RFX320FBH03805038,000-50,00032,0075,0077,00RFX3200,50
3861146RFX420FBH05006550,000-65,00042,0095,0098,00RFX4201,10
3861147RFX550FBH06508865,000-88,00055,00115,00120,00RFX5502,10
3861148RFX720FBH08811588,000-115,00072,00155,00160,00RFX7204,90
  • Spare Parts
adjustingadjustment lockingfixinghexhex
catalogue numberscrewscrewscrewwedgewrenchwrench
catalogue numberadjusting screwadjustment locking screwfixing screwwedgehex wrenchhex wrench
RFX185FBH022029121476200001214768020012346292100121476211001214804110012148040900
RFX245FBH029038121476200001214768030012346292200121476212001214804110012148040900
RFX320FBH038050121476203001214768040012147622300121476213001214804120012148041000
RFX420FBH050065121476204001214768050012148575900121476214001214804130012148041100
RFX550FBH065088121476205001214768060012148087100121476215001214804140012148041100
RFX720FBH0881151214762060012147680700121480871001214762160012148079000—
