- All boring bars have internal coolant supply directed to the cutting edge.

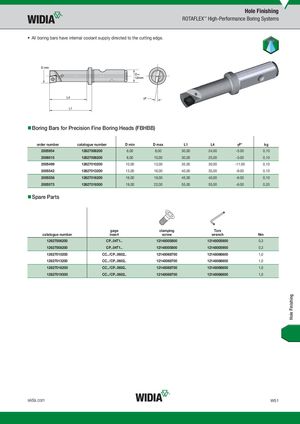

- Boring Bars for Precision Fine Boring Heads (FBHBB)
| order number | catalogue number | D min | D max | L1 | L4 | �F° | kg |
| 2005954 | 12627006200 | 6,00 | 8,00 | 30,00 | 24,00 | -5.00 | 0,10 |
| 2006015 | 12627008200 | 8,00 | 10,00 | 30,00 | 25,00 | -3.00 | 0,10 |
| 2005499 | 12627010200 | 10,00 | 13,00 | 35,00 | 30,00 | -11.00 | 0,10 |
| 2005542 | 12627013200 | 13,00 | 16,00 | 40,00 | 35,00 | -9.00 | 0,10 |
| 2005558 | 12627016200 | 16,00 | 19,00 | 45,00 | 40,00 | -6.00 | 0,10 |
| 2005573 | 12627019300 | 19,00 | 22,00 | 55,00 | 55,00 | -6.00 | 0,20 |
- Spare Parts
| gage | clamping | Torx | ||
| catalogue number | insert | screw | wrench | Nm |
| catalogue number | gage insert | clamping screw | Torx wrench | Nm |
| 12627006200 | CP..04T1.. | 12148005800 | 12148005900 | 0,3 |
| 12627008200 | CP..04T1.. | 12148005800 | 12148005900 | 0,3 |
| 12627010200 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
| 12627013200 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
| 12627016200 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
| 12627019300 | CC../CP..0602.. | 12148068700 | 12148086600 | 1,0 |
