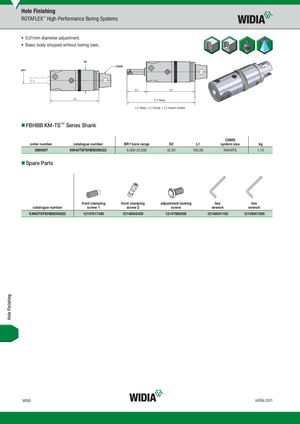

- 0,01mm diameter adjustment.
- Basic body shipped without boring bars.
L1 Assy
L1 Assy = L1 body + L1 insert holder
- FBHBB KM-TS™ Series Shank
| order number | catalogue number | BR1 bore range | D2 L1 | CSMS system size | kg |
| 3860907 | KM40TSFBHBB006022 | 6,000-22,000 | 42,00 105,00 | KM40TS | 1,10 |
| pare Parts catalogue number | front clamping screw 1 | front clamping screw 2 | adjustment locking screw | hex wrench | hex wrench |
| KM40TSFBHBB006022 | 12147617400 | 12148042400 | 12147680500 | 12148041100 | 12148041300 |
