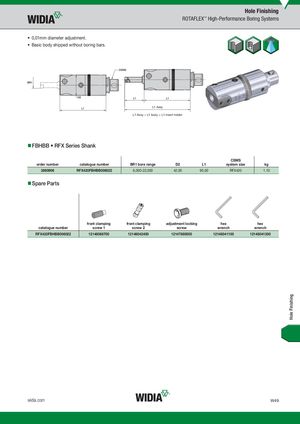

- 0,01mm diameter adjustment.
- Basic body shipped without boring bars.
L1 Assy
L1 Assy = L1 body + L1 insert holder
- FBHBB RFX Series Shank
CSMS
| order number | catalogue number | BR1 bore range | D2 | L1 | system size | kg | |
| 3860906 | RFX420FBHBB006022 | 6,000-22,000 | 42,00 | 95,00 | RFX420 | 1,10 |
- Spare Parts
front clamping front clamping adjustment locking hex hex
| catalogue number | screw 1 | screw 2 | screw | wrench | wrench | |||
| RFX420FBHBB006022 | 12148068700 | 12148042400 | 12147680500 | 12148041100 | 12148041300 |
