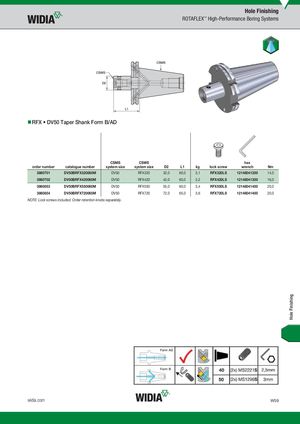

RFX • DV50 Taper Shank Form B/AD
CSMS CSWS hex
| order number | catalogue number | system size | system size | D2 | L1 | kg | lock screw | wrench | Nm | |||
| 3860701 | DV50BRFX320060M | DV50 | RFX320 | 32,0 | 60,0 | 3,1 | RFX320LS | 12148041200 | 14,0 | |||
| 3860702 | DV50BRFX420060M | DV50 | RFX420 | 42,0 | 60,0 | 3,2 | RFX420LS | 12148041300 | 16,0 | |||
| 3860853 | DV50BRFX550060M | DV50 | RFX550 | 55,0 | 60,0 | 3,4 | RFX550LS | 12148041400 | 20,0 | |||
| 3860854 | DV50BRFX720065M | DV50 | RFX720 | 72,0 | 65,0 | 3,6 | RFX720LS | 12148041400 | 20,0 |
NOTE: Lock screws included. Order retention knobs separately.
