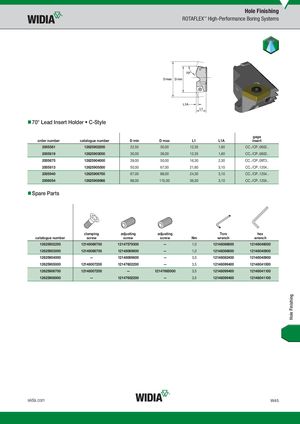

- 70° Lead Insert Holder • C-Style
| order number | catalogue number | D min | D max | L1 | L1A | gage insert |
| 2005581 | 12625902200 | 22,50 | 30,00 | 12,35 | 1,60 | CC../CP..0602.. |
| 2005619 | 12625903000 | 30,00 | 39,00 | 12,35 | 1,60 | CC../CP..0602.. |
| 2005675 | 12625904000 | 39,00 | 50,00 | 16,30 | 2,30 | CC../CP..09T3.. |
| 2005813 | 12625905000 | 50,00 | 67,00 | 21,80 | 3,10 | CC../CP..1204.. |
| 2005940 | 12625906700 | 67,00 | 88,00 | 24,30 | 3,10 | CC../CP..1204.. |
| 2006054 | 12625908986 | 88,00 | 115,00 | 36,30 | 3,10 | CC../CP..1204.. |
- Spare Parts
| clamping | adjusting | adjusting | Torx | hex | ||
| catalogue number | screw | screw | screw | Nm | wrench | wrench |
| catalogue number | clamping screw | adjusting screw | adjusting screw | Nm | Torx wrench | hex wrench |
| 12625902200 | 12148068700 | 12147579300 | — | 1,0 | 12148086600 | 12148046000 |
| 12625903000 | 12148068700 | 12148069600 | — | 1,0 | 12148086600 | 12148040900 |
| 12625904000 | — | 12148069600 | — | 3,0 | 12148082400 | 12148040900 |
| 12625905000 | 12148007200 | 12147602200 | — | 3,5 | 12148099400 | 12148041000 |
| 12625906700 | 12148007200 | — | 12147665000 | 3,5 | 12148099400 | 12148041100 |
| 12625908900 | — | 12147602200 | — | 3,5 | 12148099400 | 12148041100 |
