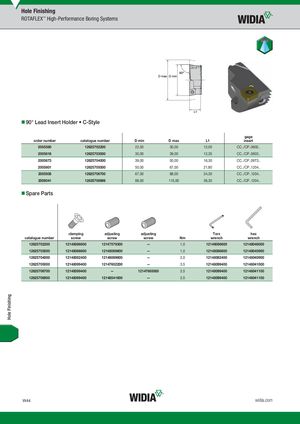

- 90° Lead Insert Holder • C-Style
| order number | catalogue number | D min | D max | L1 | gage insert |
| 2005580 | 12625702200 | 22,50 | 30,00 | 12,05 | CC../CP..0602.. |
| 2005618 | 12625703000 | 30,00 | 39,00 | 12,35 | CC../CP..0602.. |
| 2005673 | 12625704000 | 39,00 | 50,00 | 16,30 | CC../CP..09T3.. |
| 2005801 | 12625705000 | 50,00 | 67,00 | 21,80 | CC../CP..1204.. |
| 2005938 | 12625706700 | 67,00 | 88,00 | 24,30 | CC../CP..1204.. |
| 2006041 | 12625708986 | 88,00 | 115,00 | 36,30 | CC../CP..1204.. |
- Spare Parts
| clamping | adjusting | adjusting | Torx | hex | ||
| catalogue number | screw | screw | screw | Nm | wrench | wrench |
| catalogue number | clamping screw | adjusting screw | adjusting screw | Nm | Torx wrench | hex wrench |
| 12625702200 | 12148086600 | 12147579300 | — | 1,0 | 12148086600 | 12148046000 |
| 12625703000 | 12148086600 | 12148069600 | — | 1,0 | 12148086600 | 12148040900 |
| 12625704000 | 12148082400 | 12148069600 | — | 3,0 | 12148082400 | 12148040900 |
| 12625705000 | 12148099400 | 12147602200 | — | 3,5 | 12148099400 | 12148041000 |
| 12625706700 | 12148099400 | — | 12147665000 | 3,5 | 12148099400 | 12148041100 |
| 12625708900 | 12148099400 | 12148541600 | — | 3,5 | 12148099400 | 12148041100 |
