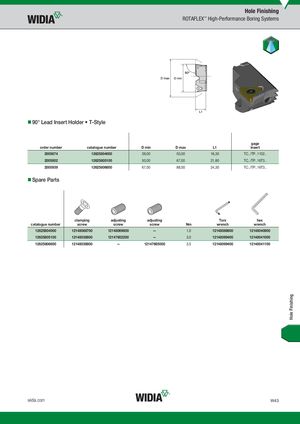

- 90° Lead Insert Holder • T-Style
gage
| order number | catalogue number | D min | D max | L1 | insert | |||
| 2005674 | 12625804000 | 39,00 | 50,00 | 16,30 | TC../TP..1102.. | |||
| 2005802 | 12625805100 | 50,00 | 67,00 | 21,80 | TC../TP..16T3.. | |||
| 2005939 | 12625806800 | 67,00 | 88,00 | 24,30 | TC../TP..16T3.. |
- Spare Parts
| clamping | adjusting | adjusting | Torx | hex | ||||||||
| catalogue number | screw | screw | screw | Nm | wrench | wrench | ||||||
| 12625804000 | 12148068700 | 12148069600 | — | 1,0 | 12148086600 | 12148040900 | ||||||
| 12625805100 | 12148038800 | 12147602200 | — | 3,0 | 12148099400 | 12148041000 | ||||||
| 12625806800 | 12148038800 | — | 12147665000 | 3,5 | 12148099400 | 12148041100 |
