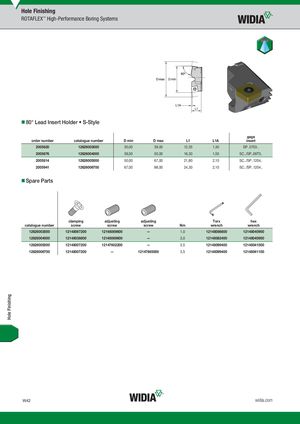

- 80° Lead Insert Holder • S-Style
| order number | catalogue number | D min | D max | L1 | L1A | gage insert |
| 2005620 | 12626003000 | 30,00 | 39,00 | 12,35 | 1,30 | SP..0703.. |
| 2005676 | 12626004000 | 39,00 | 50,00 | 16,30 | 1,50 | SC../SP..09T3.. |
| 2005814 | 12626005000 | 50,00 | 67,00 | 21,80 | 2,10 | SC../SP..1204.. |
| 2005941 | 12626006700 | 67,00 | 88,00 | 24,30 | 2,10 | SC../SP..1204.. |
- Spare Parts
| clamping | adjusting | adjusting | Torx | hex | ||||||
| catalogue number | screw | screw | screw | Nm | wrench | wrench | ||||
| 12626003000 | 12148067200 | 12148069600 | — | 1,0 | 12148086600 | 12148040900 | ||||
| 12626004000 | 12148038800 | 12148069600 | — | 3,0 | 12148082400 | 12148040900 | ||||
| 12626005000 | 12148007200 | 12147602200 | — | 3,5 | 12148099400 | 12148041000 | ||||
| 12626006700 | 12148007200 | — | 12147665000 | 3,5 | 12148099400 | 12148041100 |
